GBC20S Series

Catalog

CONN HEADER SMD R/A 20POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Height	Insulation Height	Contact Type	Insulation Material	Contact Finish - Mating	Contact Material	Style	Pitch - Mating	Pitch - Mating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Current Rating (Amps)	Connector Type	Termination	Fastening Type	Contact Shape	Contact Finish - Post

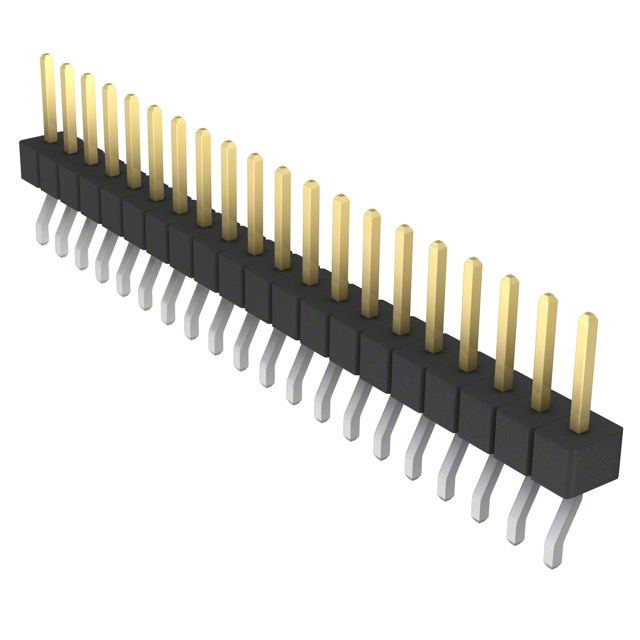

Sullins Connector Solutions GBC20SBSN-M89	2.54 µm	100 µin	All	Black	0.25 µm	10 µin	20	Right Angle Surface Mount	0.23 in	5.84 mm	Unshrouded	3.56 mm	0.14 in	Male Pin	Nylon 9T Polyamide (PA9T)	Gold	Phosphor Bronze	Board to Board Cable	0.1 "	2.54 mm	1	150 °C	-65 ░C	UL94 V-0	3 A	Header Breakaway	Solder	Push-Pull	Square	Tin
Sullins Connector Solutions GBC20SFBN-M30	2.54 µm	100 µin	All	Black	0.25 µm	10 µin	20	Surface Mount	0.318 in	8.08 mm	Unshrouded	2.54 mm	0.1 in	Male Pin	Nylon 9T Polyamide (PA9T)	Gold	Phosphor Bronze	Board to Board Cable	0.1 "	2.54 mm	1	150 °C	-65 ░C	UL94 V-0	3 A	Header Breakaway	Solder	Push-Pull	Square	Tin
Sullins Connector Solutions GBC20SABN-M30	2.54 µm	100 µin	All	Black	0.25 µm	10 µin	20	Surface Mount	0.23 in	5.84 mm	Unshrouded	2.54 mm	0.1 in	Male Pin	Nylon 9T Polyamide (PA9T)	Gold	Phosphor Bronze	Board to Board Cable	0.1 "	2.54 mm	1	150 °C	-65 ░C	UL94 V-0	3 A	Header Breakaway	Solder	Push-Pull	Square	Tin
