833-062 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 62POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Gender	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Card Type	Contact Finish	Number of Positions	Contact Material	Termination	Number of Rows [custom]	Read Out	Flange Feature	Features
EDAC Inc. 833-062-541-802	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Wire Wrap	2	Dual
EDAC Inc. 833-062-521-212	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder	2	Dual	Side Mount Opening Unthreaded
EDAC Inc. 833-062-520-802	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder	2	Dual
EDAC Inc. 833-062-558-812	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder	2	Dual	Side Mount Opening Unthreaded
EDAC Inc. 833-062-555-808	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in			Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder	2	Dual	4-40 Threaded Insert Top Mount Opening	Card Extender
EDAC Inc. 833-062-544-802	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Wire Wrap	2	Dual
EDAC Inc. 833-062-500-812	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	3.25 mm	0.128 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder Eyelet(s)	2	Dual	Side Mount Opening Unthreaded
EDAC Inc. 833-062-521-803	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in	2.95 mm	0.116 "	Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder	2	Dual	Floating Bobbin Top Mount Opening
EDAC Inc. 833-062-520-208	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in			Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Solder	2	Dual	4-40 Flush Mount Threaded Insert Top Opening

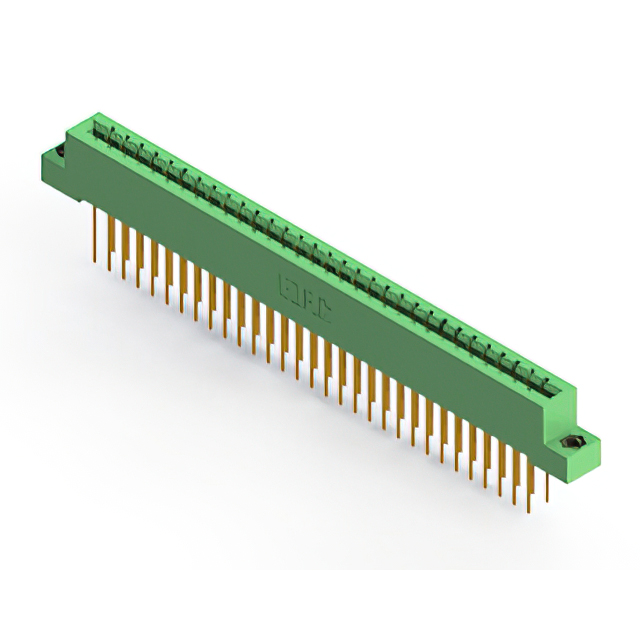

EDAC Inc. 833-062-540-208	Diallyl Phthalate (DAP)	2	Female	3.96 mm	0.156 in			Cantilever	125 °C	-40 C	0.25 Ám	10 Áin	Green	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	31	Non Specified - Dual Edge	Gold	62	Copper Alloy	Wire Wrap	2	Dual	4-40 Flush Mount Threaded Insert Top Opening
