627-M50 Series
Manufacturer: EDAC Inc.
Beta
⌘K

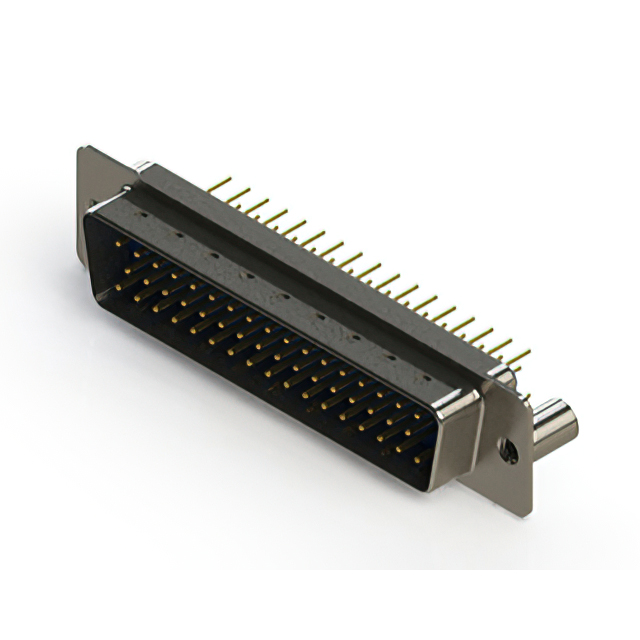

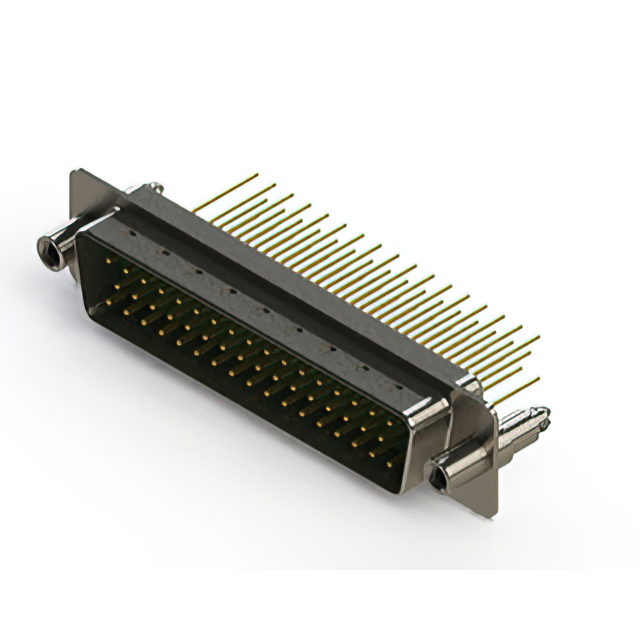

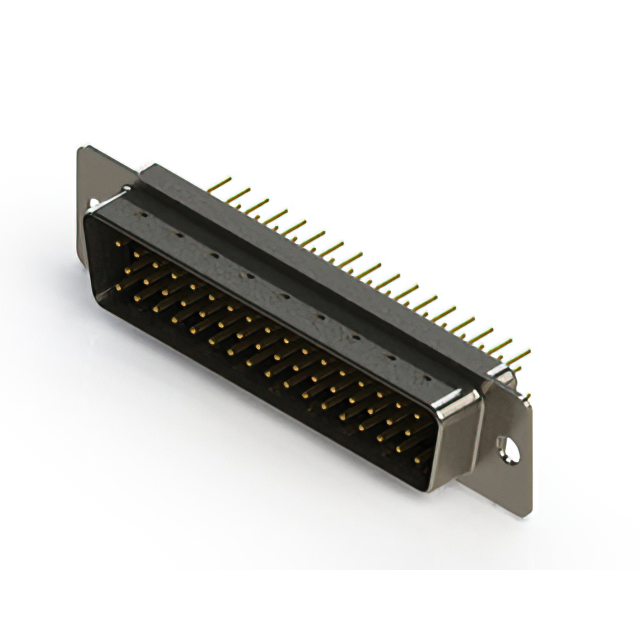

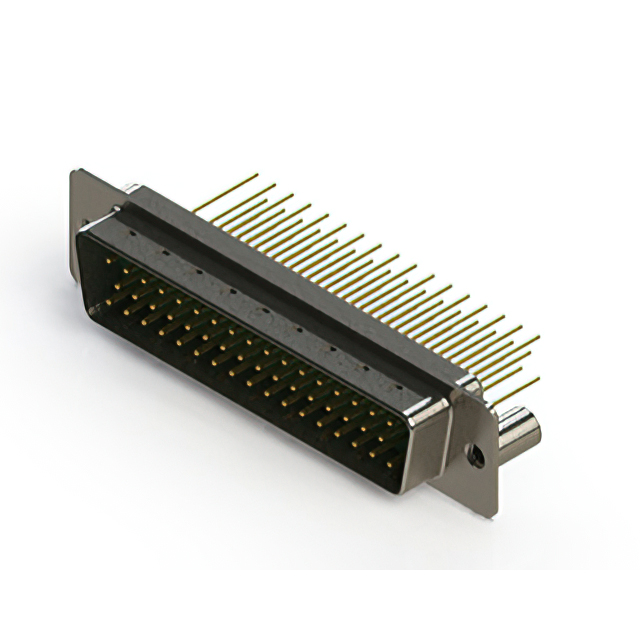

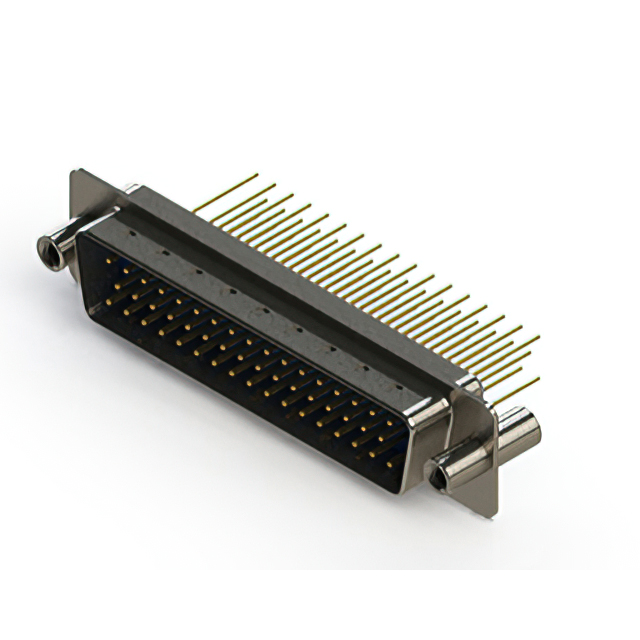

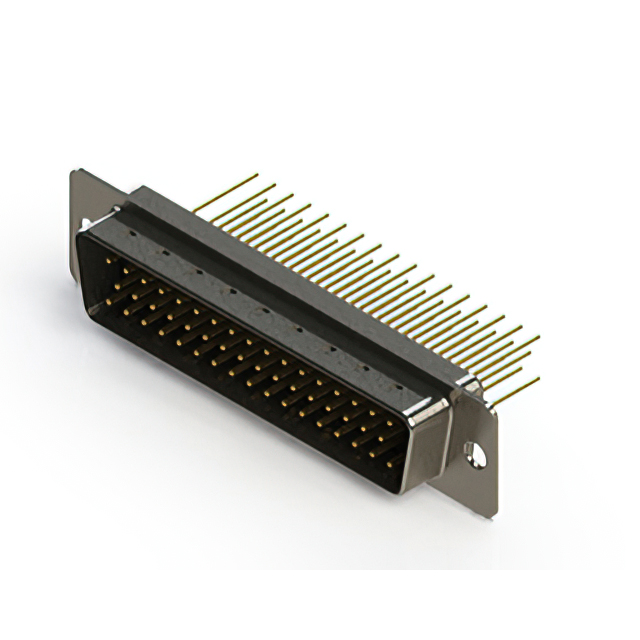

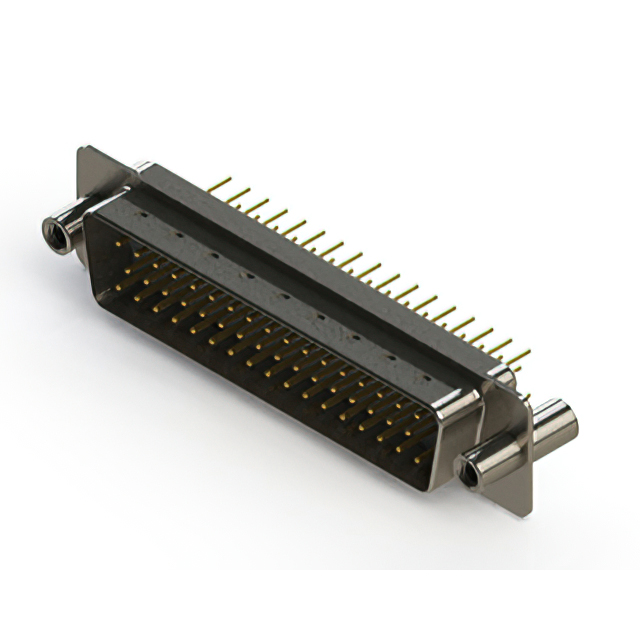

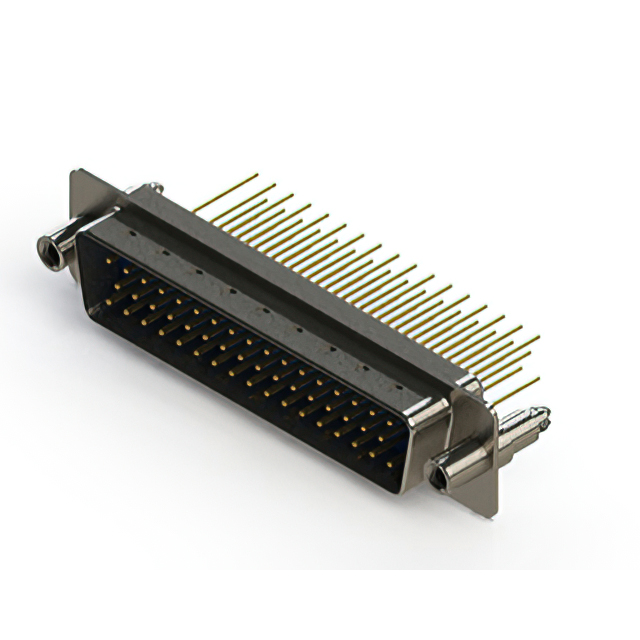

627M SERIES VERTICAL D-SUB PLUG
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Contact Type | Features | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Flange Feature | Mounting Type | Termination | Contact Finish | Number of Positions | Number of Rows [custom] | Connector Type | Shell Material, Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | White | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Grounding Indents Shielded | 0.38 µm | 15 µin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | ||
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Grounding Indents Shielded | 0.76 Ám | 30 Áin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Board Lock Grounding Indents Shielded | 0.76 Ám | 30 Áin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | ||
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Black | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Grounding Indents Shielded | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | Nickel Plated Steel | Flash | ||
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Grounding Indents Shielded | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | Nickel Plated Steel | Flash | ||
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Green | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Board Lock Grounding Indents Shielded | 0.76 Ám | 30 Áin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Green | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Board Lock Grounding Indents Shielded | 0.38 µm | 15 µin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Blue | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Board Lock Grounding Indents Shielded | 0.76 Ám | 30 Áin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | ||
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Green | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Grounding Indents Shielded | 0.38 µm | 15 µin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins | Nickel Plated Steel | |
 EDAC Inc. | -55 C | 125 °C | Polyamide (PA6T) Nylon 6T | Green | Copper Alloy | 5 A | 5 | D DD | D-Sub | Signal | Grounding Indents Shielded | 0.38 µm | 15 µin | UL94 V-0 | Board Side (4-40) | Through Hole | Solder | Gold | 50 | 3 | Plug Male Pins |
