MT100 Series

Catalog

INTERFACE

Part	Current - Gate Trigger (Igt) (Max) [Max]	Mounting Type	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Structure [custom]	Structure [custom]	Structure [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]
Micro Commercial Components MT100DT12L1-BP	150 mA	Chassis Mount	1.2 kV	100 A	6	1	1200 A	Bridge	3-Phase	SCRs/Diodes	Module	150 °C	-40 °C
Micro Commercial Components MT100DT18L1-BP	150 mA	Chassis Mount	1.8 kV	100 A	6	1	1200 A	Bridge	3-Phase	SCRs/Diodes	Module	150 °C	-40 °C
Micro Commercial Components MT100DT16L1-BP	150 mA	Chassis Mount	1.6 kV	100 A	6	1	1200 A	Bridge	3-Phase	SCRs/Diodes	Module	150 °C	-40 °C

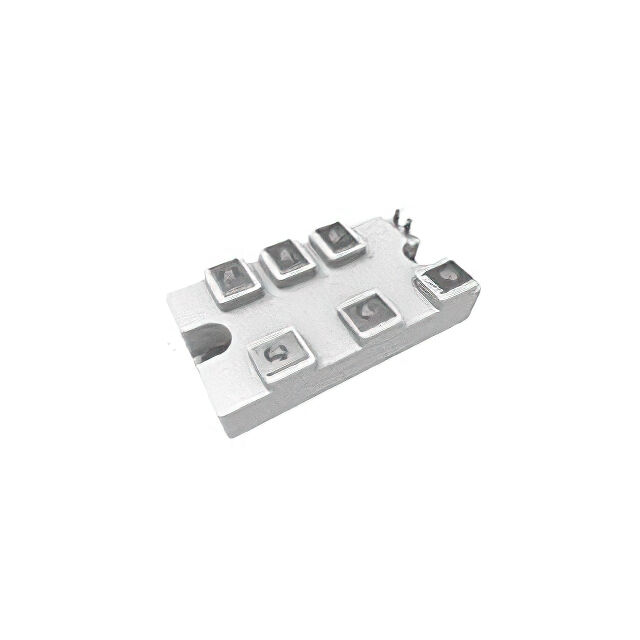

Micro Commercial Components MT100DT08L1-BP	150 mA	Chassis Mount	800 V	100 A	6	1	1200 A	Bridge	3-Phase	SCRs/Diodes	Module	150 °C	-40 °C
