NCP5005 Series

LED Driver, Boost, Compact Backlight

Catalog

LED Driver, Boost, Compact Backlight

Part	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Type	Mounting Type	Number of Outputs	Topology	Package / Case	Internal Switch(s)	Supplier Device Package	Voltage - Supply (Max)	Dimming	Current - Output / Channel	Utilized IC / Part	Supplied Contents	Outputs and Type	Voltage - Input
ON Semiconductor NCP5005SNT1G	Backlight	85 C	-25 °C	24 V	DC DC Regulator	Surface Mount	1	Step-Up (Boost)	SOT-23-5 Thin TSOT-23-5		5-TSOP	5.5 V	PWM	50 mA

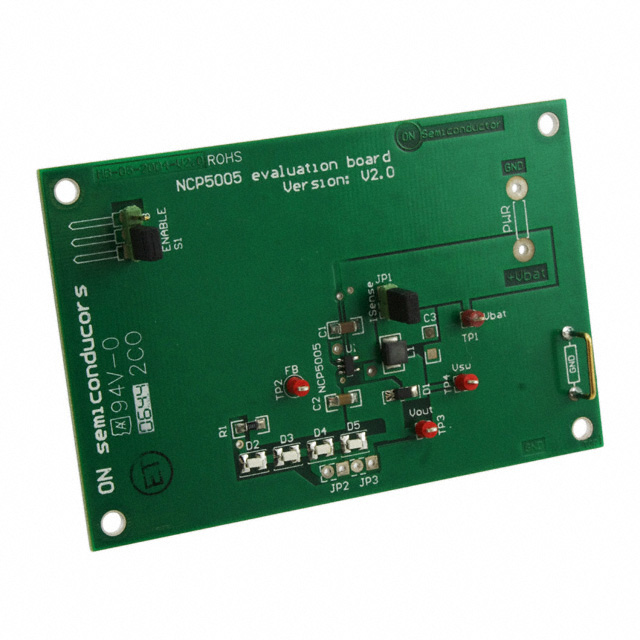

ON Semiconductor NCP5005GEVB				22 V											NCP5005	Board(s)	1 Non-Isolated Output	3.6 V

Catalog

LED Driver, Boost, Compact Backlight

Key Features

• 2.7 to 5.5 V Input Voltage Range

• Vout to 24 V Output Compliance allows up to 5 LEDs drive in Series

• Buil-in Overvoltage protection

• Full EMI Immunity

• Inductor Based Converter brings up to 90% Efficiency

• Constant Output Current regulation

• 0.3 µA Stand By Quiescent Current

• Includes Dimming Function (PWM)

• Enable Function Driven Directly from Low Battery Voltage Source

• Automatic LEDs Current Matching

• Thermal Shutdown Protection

• All Pins are Fully ESD Protected

• Low EMI Radiation

Description

The NCP5005 is high efficiency boost converter operating in current loop, based on a PFM mode, to drive White LED. The current mode regulation allows a uniform brightness of the LEDs. The chip has been optimized for small ceramic capacitors, capable to supply up to 1.0 W output power.
