CKR06/02 Series
Manufacturer: KYOCERA AVX
Beta
⌘K

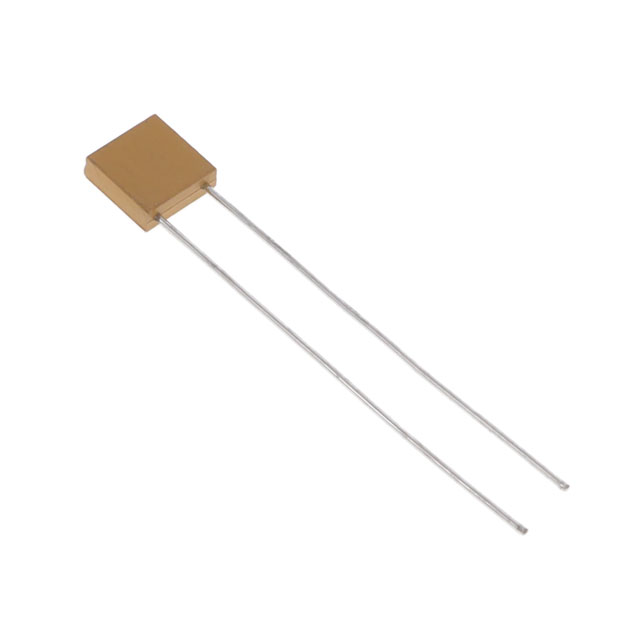

MULTILAYER CERAMIC CAPACITORS MLCC - LEADED CKR06BX105KSV
| Part | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Capacitance | Lead Style | Package / Case | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) | Mounting Type | Applications | Tolerance | Failure Rate | Lead Spacing | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | BX | 0.29 " | 2.29 mm | 7.37 mm | 0.09 " | 1 µF | Straight | Radial | 50 VDC | -55 C | 125 °C | 0.3 in | 7.62 mm | Through Hole | High Reliability | 10 % | S (0.001%) | 0.2 in | 5.08 mm |
 KYOCERA AVX | BX | 0.29 " | 2.29 mm | 7.37 mm | 0.09 " | 100000 pF | Straight | Radial | 100 V | -55 C | 125 °C | 0.3 in | 7.62 mm | Through Hole | High Reliability | 10 % | R (0.01%) | 0.2 in | 5.08 mm |
 KYOCERA AVX | BX | 0.29 " | 2.29 mm | 7.37 mm | 0.09 " | Straight | Radial | 100 V | -55 C | 125 °C | 0.3 in | 7.62 mm | Through Hole | High Reliability | 10 % | R (0.01%) | 0.2 in | 5.08 mm | |
 KYOCERA AVX | BX | 0.29 " | 2.29 mm | 7.37 mm | 0.09 " | 10000 pF | Straight | Radial | 200 VDC | -55 C | 125 °C | 0.3 in | 7.62 mm | Through Hole | High Reliability | 10 % | R (0.01%) | 0.2 in | 5.08 mm |
