CGHV1 Series

Catalog

RF MOSFET HEMT 40V DIE

Part	Power - Output	Gain	Package / Case	Voltage - Test	Supplier Device Package	Technology	Current - Test	Voltage - Rated	Frequency	Supplied Contents	For Use With/Related Products	Frequency [Max]	Frequency [Min]	Type	Contents	Utilized IC / Part	Current Rating (Amps)

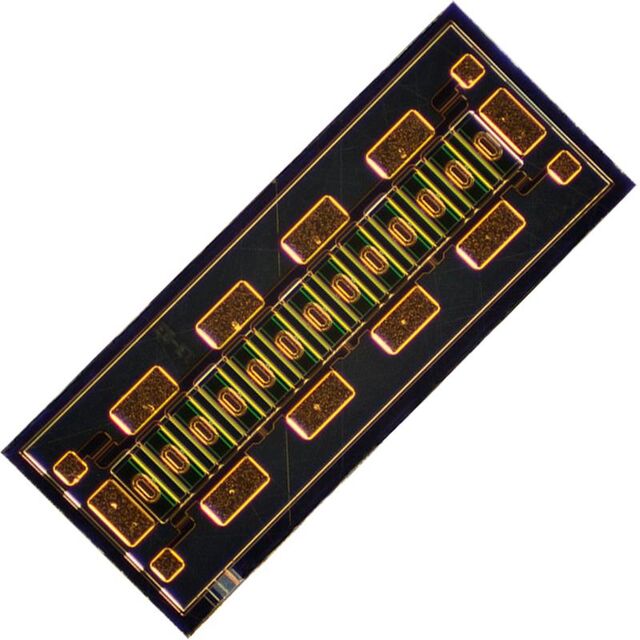

MACOM Technology Solutions CGHV1J025D-GP4	25 W	17 dBi	Die	40 V	Die	HEMT	120 mA	100 V	18 GHz

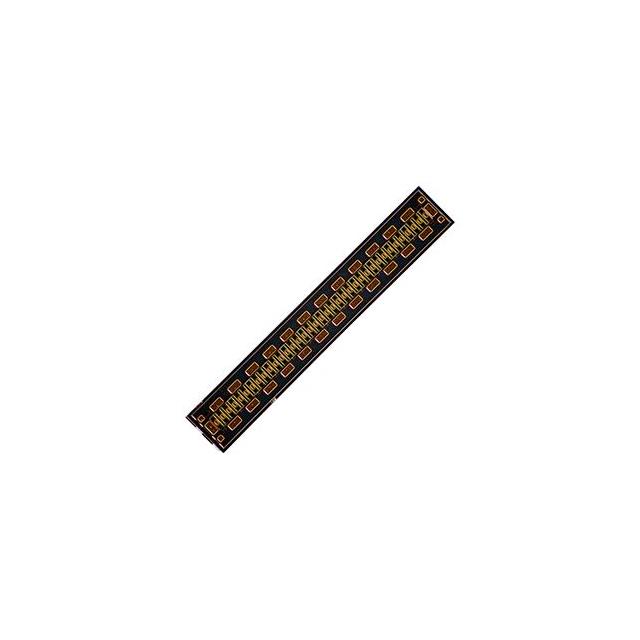

MACOM Technology Solutions CGHV1J070D-GP4	70 W	17 dBi	Die	40 V	Die	HEMT	360 mA	100 V	18 GHz
MACOM Technology Solutions CGHV1F006S-AMP1										Partially Populated Board - Main IC Not Included	CGHV1F006	18 GHz	0 Hz	HEMT	Partially Populated Board(s) - Main IC/Module/Part Not Included	CGHV1F006
MACOM Technology Solutions CGHV1F025S	29 W	11.6 dBi	12-VFDFN Exposed Pad	40 V	12-DFN (4x3)	HEMT	150 mA	100 V				15 GHz	0 Hz				2 A

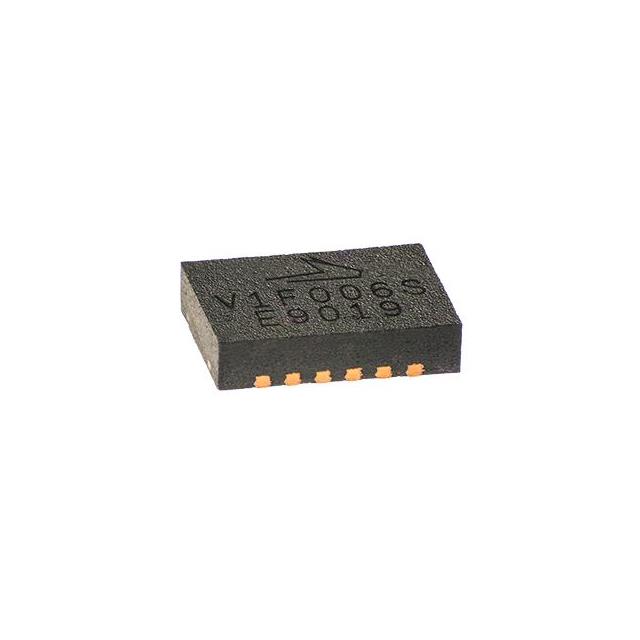

MACOM Technology Solutions CGHV1F006S	8 W	16 dBi	12-VFDFN Exposed Pad	40 V	12-DFN (4x3)	HEMT	60 mA	100 V	6 GHz								950 mA
MACOM Technology Solutions CGHV1F025S-AMP1										Partially Populated Board - Main IC Not Included	CGHV1F025	15 GHz	0 Hz	HEMT	Partially Populated Board(s) - Main IC/Module/Part Not Included	CGHV1F025

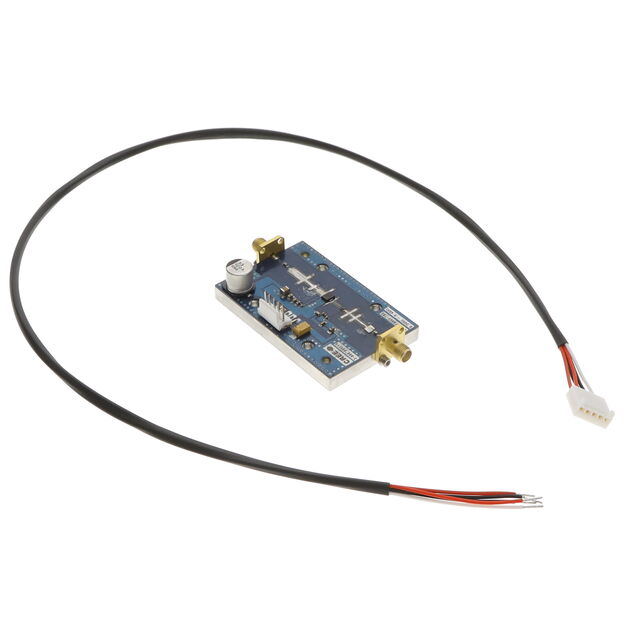

MACOM Technology Solutions CGHV1F006S-AMP3										Partially Populated Board - Main IC Not Included	CGHV1F006	18 GHz	0 Hz	HEMT	Partially Populated Board(s) - Main IC/Module/Part Not Included	CGHV1F006

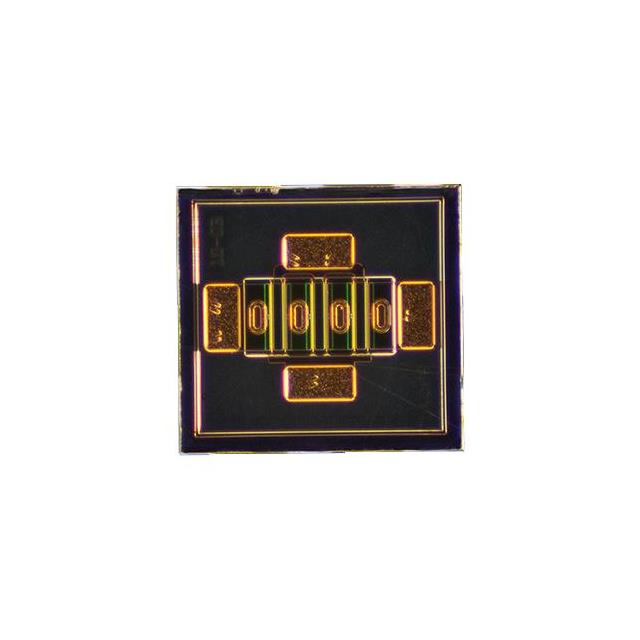

MACOM Technology Solutions CGHV1J006D-GP4	6 W	17 dBi	Die	40 V	Die	HEMT	30 mA	100 V	18 GHz
