DTM300 Series

Catalog

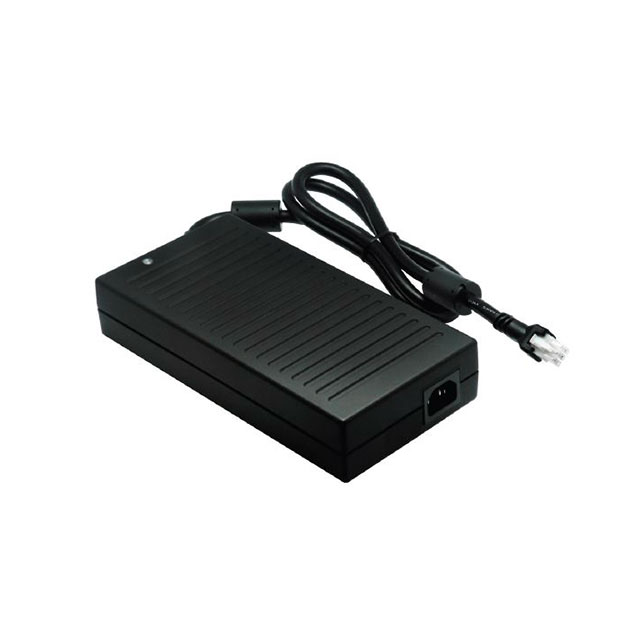

AC/DC POWER SUPPLY, MEDICAL, 1 OUTPUT, 300 W, 54 V, 5.56 A

Part	Input Type	Form	No Load Power Consumption	Current - Output (Max) [Max]	Voltage - Output	Region Utilized	Output Connector	Output Connector	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Cord Length	Cord Length	Approval Agency	Applications	Input Connector	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Min]	Operating Temperature [Max]
TDK Corporation DTM300PW540D2	Cord (Sold Separately)	Desktop (Class II)	500 mW	5.56 A	54 V	International	10 Pin	DIN	Level VI	8.74 in	45 mm	1.77 in	222 mm	4.41 "	112 mm	31.5 in	0.8 m	CE	ITE (Commercial) Medical	IEC 320-C18	300 W	264 VAC	90 VAC	-30 ░C	60 °C
TDK Corporation DTM300PW240D1	Cord (Sold Separately)	Desktop (Class I)	500 mW	12.5 A	24 V	International	10 Pin	DIN	Level VI	8.74 in	45 mm	1.77 in	222 mm	4.41 "	112 mm	31.5 in	0.8 m	CE	ITE (Commercial) Medical	IEC 320-C14	300 W	264 VAC	90 VAC	-30 ░C	60 °C
TDK Corporation DTM300PW120D2	Cord (Sold Separately)	Desktop (Class II)	500 mW	25 A	12 V	International	10 Pin	DIN	Level VI	8.74 in	45 mm	1.77 in	222 mm	4.41 "	112 mm	31.5 in	0.8 m	CE	ITE (Commercial) Medical	IEC 320-C18	300 W	264 VAC	90 VAC	-30 ░C	60 °C
TDK Corporation DTM300PW480D1	Cord (Sold Separately)	Desktop (Class I)	500 mW	6.25 A	48 V	International	10 Pin	DIN	Level VI	8.74 in	45 mm	1.77 in	222 mm	4.41 "	112 mm	31.5 in	0.8 m	CE	ITE (Commercial) Medical	IEC 320-C14	300 W	264 VAC	90 VAC	-30 ░C	60 °C
TDK Corporation DTM300PW540D1	Cord (Sold Separately)	Desktop (Class I)	500 mW	5.56 A	54 V	International	10 Pin	DIN	Level VI	8.74 in	45 mm	1.77 in	222 mm	4.41 "	112 mm	31.5 in	0.8 m	CE	ITE (Commercial) Medical	IEC 320-C14	300 W	264 VAC	90 VAC	-30 ░C	60 °C
TDK Corporation DTM300PW480D2	Cord (Sold Separately)	Desktop (Class II)	500 mW	6.25 A	48 V	International	10 Pin	DIN	Level VI	8.74 in	45 mm	1.77 in	222 mm	4.41 "	112 mm	31.5 in	0.8 m	CE	ITE (Commercial) Medical	IEC 320-C18	300 W	264 VAC	90 VAC	-30 ░C	60 °C
