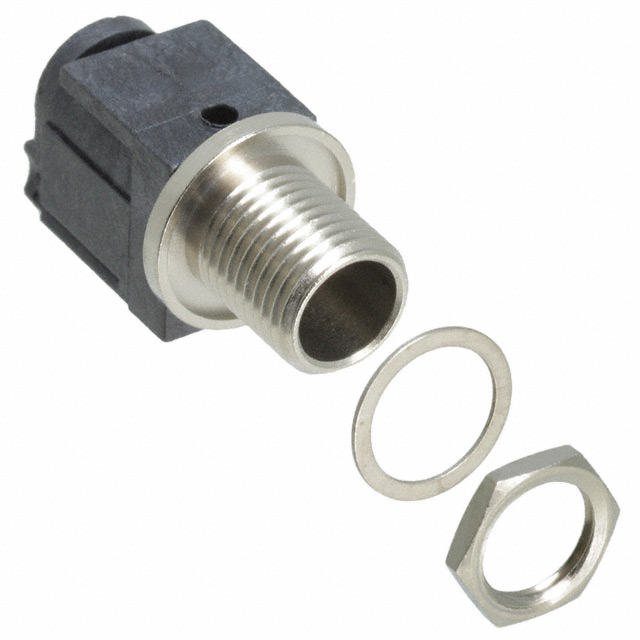

RAPC10 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K
DC POWER CONNECTOR, JACK, 11 A, 2 MM, THROUGH HOLE MOUNT, THROUGH HOLE
| Part | Includes | Housing Material | Contact Material - Plating | Thread Size | Mounting Type | Body Color | Contact Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Actual Diameter [diameter] | Actual Diameter [diameter] | Internal Switch(s) | Mounting Feature | Current Rating (Amps) | Voltage - Rated | Connector Type | Gender | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Shielding | Features | Termination | Industry Recognized Mating Diameter [diameter] | Internal Switch(s) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 1 Nut 1 Washer 3 pcs - 1 Connector | Thermoplastic | Silver | 5/16"-32 | Right Angle Through Hole | Black Silver | Copper Alloy | Copper Alloy | -40 C | 105 ░C | 0.079 in 0.252 in | 2 mm 6.4 mm | Single Switch Normally Closed | Bulkhead - Front Side Nut | 11 A | 24 VDC | Jack | Male | 2 | 3 | Unshielded | Board Guide | Solder | ||
 SWITCHCRAFT/CONXALL | 1 Connector 1 Nut 1 O-Ring 1 Washer | Thermoplastic | Tin | 5/16"-32 | Panel Mount | Black Silver | Copper Alloy | Copper Alloy | -40 C | 105 ░C | 0.076 in 0.226 in | 1.93 mm 5.75 mm | Bulkhead - Front Side Nut | 10 A | 24 VAC | Jack | Male | 2 | 2 | Unshielded | Mounting Hardware | Solder Eyelet(s) | 2 mm 5.5 mm |
