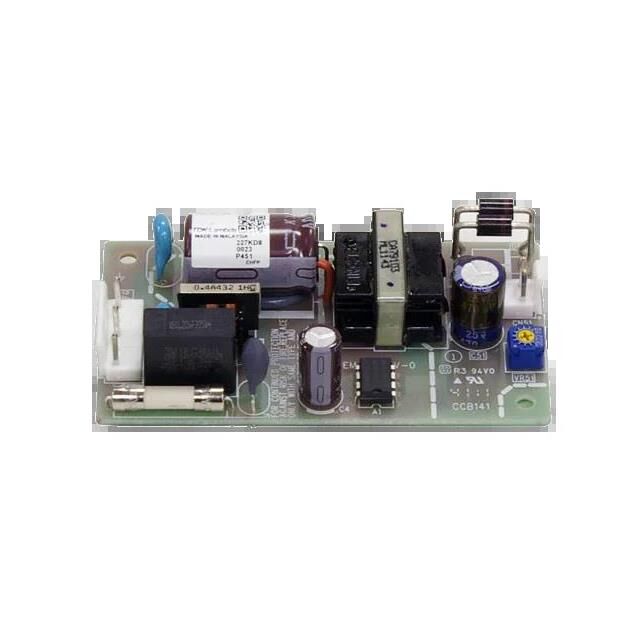

ZWS15B Series
Manufacturer: TDK Corporation
Beta
⌘K
AC/DC ENCLOSED POWER SUPPLY (PSU), ITE, 1 OUTPUTS, 9.9 W, 3.3 V, 3 A
| Part | Mounting Type | Power (Watts) | Voltage - Isolation | Voltage - Output 1 | Type | Features | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Applications | Number of Outputs | Approval Agency | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | Chassis Mount | 10 W | 3000 V | 3.3 V | Enclosed | Adjustable Output Universal Input | 71 % | 50 mm | 0.87 in | 3.44 in | 1.97 in | 87.5 mm | 22 mm | ITE (Commercial) | 1 | CE | 85 VAC 120 VDC | 265 VAC 370 VDC | 3 A | 70 °C | -10 °C |
 TDK Corporation | Chassis Mount | 30 Watts | 3000 V | 24 V | Enclosed | Adjustable Output Universal Input | 85 % | 50 mm | 0.87 in | 3.44 in | 1.97 in | 87.5 mm | 22 mm | ITE (Commercial) | 1 | CE | 85 VAC 120 VDC | 265 VAC 370 VDC | 700 mA | 70 °C | -10 °C |
TDK Corporation | Chassis Mount | 15 W | 3000 V | 15 V | Enclosed | Adjustable Output Universal Input | 84 % | 50 mm | 0.87 in | 3.44 in | 1.97 in | 87.5 mm | 22 mm | ITE (Commercial) | 1 | CE | 85 VAC 120 VDC | 265 VAC 370 VDC | 1 A | 70 °C | -10 °C |
TDK Corporation | Chassis Mount | 16 W | 3000 V | 12 V | Enclosed | Adjustable Output Universal Input | 83 % | 50 mm | 0.87 in | 3.44 in | 1.97 in | 87.5 mm | 22 mm | ITE (Commercial) | 1 | CE | 85 VAC 120 VDC | 265 VAC 370 VDC | 1.3 A | 70 °C | -10 °C |
