Q6 Series

Manufacturer: APEM Inc.

Catalog

LED PANEL MOUNT INDICATORS LED INDICATOR 6MM

Part	Current	Millicandela Rating	Lens Style	Type	Lens Transparency	Voltage	Ingress Protection	Viewing Angle	Lens Size	Lens Size	Lens Color	Termination Style	Panel Cutout Shape	Lamp Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Ratings	Panel Cutout Dimensions	Panel Cutout Dimensions	Current
APEM Inc. Q6P1BXXG02E	20 mA	50 mcd	Round with Domed Top	LED	Diffused	2.1 V	IP67	100 °	3 mm	T-1	Green	Solder Lug	Round	Green	6 mm	0.24 in
APEM Inc. Q6F1GXXR28E	20 mA	10 mcd	Round with Domed Top	LED	Diffused	28 V	IP67	100 °	3 mm	T-1	Red	Solder Lug	Round	Red	6 mm	0.24 in	DC
APEM Inc. Q6P1GXXB12E	20 mA	1200 mcd	Round with Domed Top	LED	Diffused	12 V	IP67	100 °	3 mm	T-1	Blue	Solder Lug	Round	Blue			DC	6.1 mm	0.24 in
APEM Inc. Q6F1CXXY12E	20 mA	8 mcd	Round with Flat Top	LED	Diffused	12 V	IP67	100 °	3 mm	T-1	Yellow	Solder Lug	Round	Yellow			DC	6.1 mm	0.24 in
APEM Inc. Q6P3BXXR12EX0012	20 mA	40 mcd	Round with Domed Top	LED	Diffused	12 V		100 °	3 mm	T-1	Red	Wire Leads - 7.87" (200.00mm)	Round	Red	6 mm	0.24 in	DC

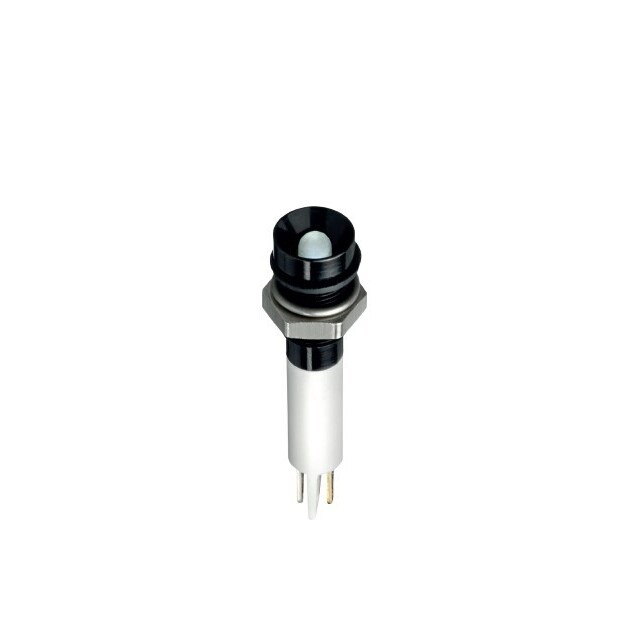

APEM Inc. Q6F7CYYGY02E			Round with Flat Top	LED		2 V	IP67		3 mm	T-1		Wire Leads - 7.87" (200.00mm)	Round	Green Yellow	6 mm	0.24 in	DC			20mA Green 20mA Yellow
APEM Inc. Q6R1CXXW24E	20 mA	1200 mcd	Round with Domed Top	LED	Diffused	24 V	IP67	100 °	3 mm	T-1	White	Solder Lug	Round	White			DC	6.1 mm	0.24 in
APEM Inc. Q6F1BXXR24E	20 mA	10 mcd	Round with Flat Top	LED	Diffused	24 V	IP67	100 °	3 mm	T-1	Red	Solder Lug	Round	Red			DC	6.1 mm	0.24 in
APEM Inc. Q6F1CXXG06E	20 mA	45 mcd	Round with Flat Top	LED	Diffused	6 V	IP67	100 °	3 mm	T-1	Green	Solder Lug	Round	Green			DC	6.1 mm	0.24 in
APEM Inc. Q6P7BXXG02E	20 mA	40 mcd	Round with Domed Top	LED	Diffused	2.1 V	IP67	100 °	3 mm	T-1	Green	Wire Leads - 7.87" (200.00mm)	Round	Green				6.1 mm	0.24 in
