11-4 Series

Catalog

22-18 AWG NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Part	Contact Finish	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Mounting Type	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Thickness	Thickness	Termination	Terminal Type	Length - Overall [x]	Length - Overall [x]	Material - Insulation	Insulation Diameter	Insulation Diameter	Color	Length - Overall	Length - Overall
3M Electronic Specialty 11-4S-W	Tin	Copper	6.35 mm	0.25 "	Brazed Seam	Free Hanging (In-Line)	Non-Insulated	22 AWG	17.5 AWG	4 Stud	0.76 mm	0.03 in	Crimp	Circular	0.6 in	15.24 mm
3M Electronic Specialty 11-4S-NB			6.35 mm	0.25 "	Butted Seam	Free Hanging (In-Line)	Insulated	22 AWG	17.5 AWG	4 Stud	0.76 mm	0.03 in	Crimp	Circular			Nylon Polyamide (PA)	0.145 in	3.68 mm	Red	20.07 mm	0.79 in
3M Electronic Specialty 11-4S-P	Tin	Copper ETP	6.35 mm	0.25 "	Butted Seam	Free Hanging (In-Line)	Insulated	22 AWG	17.5 AWG	4 Stud	0.76 mm	0.03 in	Crimp	Circular	0.8 "	20.32 mm	Vinyl	0.145 in	3.68 mm	Red

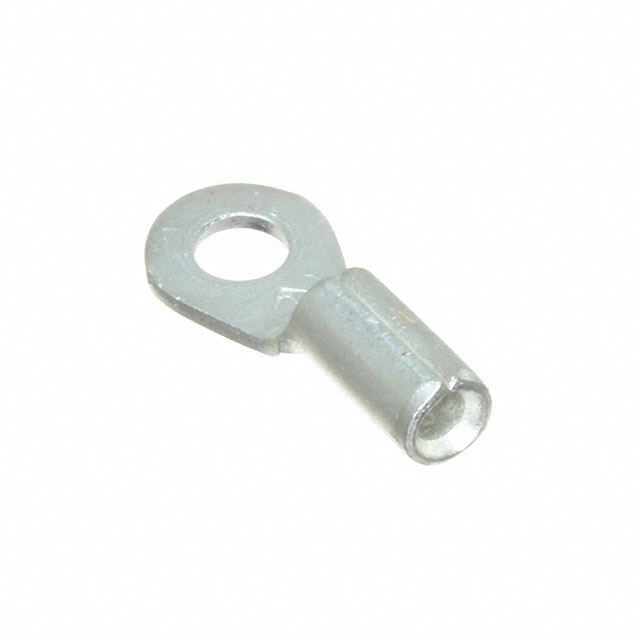

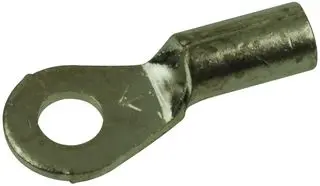

3M Electronic Specialty 11-4S	Tin	Copper ETP	6.35 mm	0.25 "	Butted Seam	Free Hanging (In-Line)	Non-Insulated	22 AWG	17.5 AWG	4 Stud	0.76 mm	0.03 in	Crimp	Circular	0.6 in	15.24 mm
