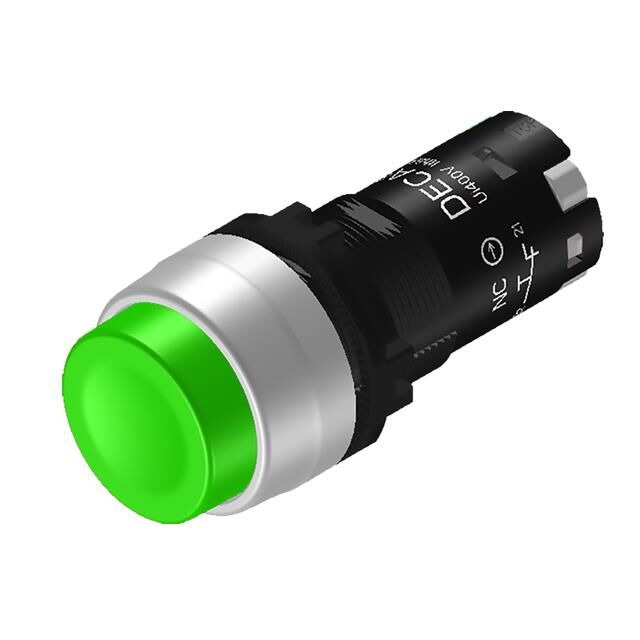

CP24B-A2E Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
22MM/GN/MAINTAINED/1NC
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Termination Style | Color - Actuator/Cap | Panel Cutout Dimensions [diameter] | Circuit | Type | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Ingress Protection | Voltage Rating - DC | Mounting Type | Actuator Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 250000 Cycles | 100000 Cycles | 120 V | Spring Terminal | Green | 22.3 mm | SPST-NC | Standard | -25 °C | 70 °C | 2.5 A 8 A | IP66 - Dust Tight Water Resistant | 30 V | Panel Mount Front | Button Round | On-Off |
