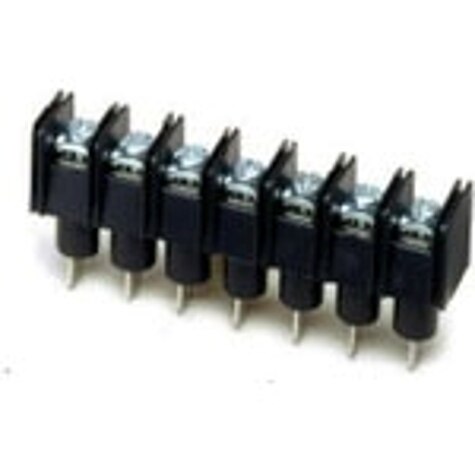

Barrier Terminal Blocks A319304-NL
Barrier Terminal Blocks A319304-NL
| Part | Number of Rows | Number of Wire Entries | Features | Current Rating (Amps) | Barrier Type | Bottom Termination | Wire Gauge [Max] | Wire Gauge [Min] | Pitch | Pitch | Top Termination | Number of Circuits | Voltage Rating | Color | Terminal Block Type | Operating Temperature [Min] | Operating Temperature [Max] | Terminal Screw Finish | Material Flammability Rating | Material - Insulation | Mounting Type | Terminal Screw Material | Bottom Termination | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 1 | 4 | Flange | 30 A | 2 Wall (Dual) | Closed | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws with Quick Connect Tabs | 4 | 600 V | Black | Barrier Block | |||||||||
 Eaton - Electronics Division | 1 | 16 | Flange | 30 A | 2 Wall (Dual) | PC Pin | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws | 16 | 600 V | Black | Barrier Block | |||||||||
 Eaton - Electronics Division | 1 | 4 | Flange | 30 A | 2 Wall (Dual) | Insulated Quick Connect | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws | 4 | 600 V | Black | Barrier Block | -40 C | 105 ░C | Zinc | UL94 V-0 | Thermoplastic | Chassis Panel | Steel | 0.25 in | |
Eaton - Electronics Division | 1 | 9 | Flange | 30 A | 2 Wall (Dual) | Insulated Quick Connect | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws | 600 V | Black | Barrier Block | -40 C | 105 ░C | Zinc | UL94 V-0 | Thermoplastic | Chassis Panel | Steel | 0.25 in | 9 | |
Eaton - Electronics Division | 1 | 8 | Flange | 30 A | 2 Wall (Dual) | PC Pin | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws with Captive Plate | 8 | 600 V | Black | Barrier Block | -40 C | 105 ░C | Zinc | UL94 V-0 | Thermoplastic | Through Hole | Steel | ||
Eaton - Electronics Division | 1 | 6 | Flange | 30 A | 2 Wall (Dual) | Wire Wrap | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws | 6 | 600 V | Black | Barrier Block | |||||||||
Eaton - Electronics Division | 1 | 10 | Flange | 30 A | 2 Wall (Dual) | Quick Connect | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws with Captive Plate | 10 | 600 V | Black | Barrier Block | 0.187 in | ||||||||
Eaton - Electronics Division | 1 | 3 | Flange | 30 A | 2 Wall (Dual) | Insulated Quick Connect | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws with Quick Connect Tabs | 3 | 600 V | Black | Barrier Block | -40 C | 105 ░C | Zinc | UL94 V-0 | Thermoplastic | Chassis Panel | Steel | 0.25 in | |
Eaton - Electronics Division | 1 | 4 | Flange | 30 A | 2 Wall (Dual) | Closed | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws with Quick Connect Tabs | 4 | 600 V | Black | Barrier Block | |||||||||
Eaton - Electronics Division | 1 | 2 | Positions Stamped | 30 A | 2 Wall (Dual) | PC Pin | 22 AWG | 12 AWG | 0.437 " | 11.1 mm | Screws | 2 | 600 V | Black | Barrier Block | -40 C | 105 ░C | Zinc | UL94 V-0 | Thermoplastic | Through Hole | Steel |
