KWA Series

Manufacturer: Chemi-Con

Catalog

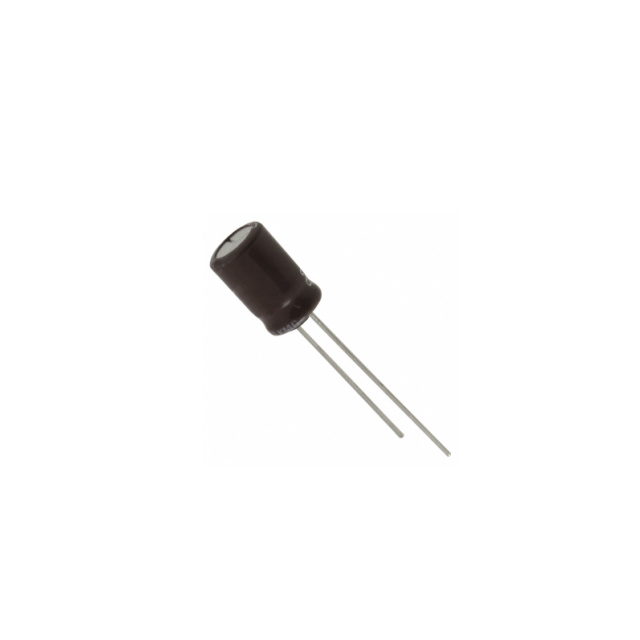

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 68UF 420V

Part	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Capacitance	Applications	Tolerance	Lifetime @ Temp.	Voltage - Rated	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Mounting Type	Polarization	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKWA421ELL680MK35S	37 mm	1.457 in	68 µF	General Purpose	20 %	5000 Hrs	420 V	954 mA	0.197 "	5 mm	Through Hole	Polar	-40 C	105 ░C	Can Radial	0.492 in	12.5 mm	530 mA
Chemi-Con EKWA421ELL330MJ30S		1.26 in	33 ÁF	General Purpose	20 %	5000 Hrs	420 V	576 mA	0.197 "	5 mm	Through Hole	Polar	-40 C	105 ░C	Can Radial	0.394 in	10 mm	320 mA	32 mm
Chemi-Con EKWA451ELL680MUN3S	33.5 mm	1.319 in	68 µF	General Purpose	20 %	5000 Hrs	450 V	954 mA	0.295 in	7.5 mm	Through Hole	Polar	-40 C	105 ░C	Can Radial	0.571 in	14.5 mm	530 mA
Chemi-Con EKWA421ELL820MK40S		1.654 in	0.082 mF	General Purpose	20 %	5000 Hrs	420 V	1.098 A	0.197 "	5 mm	Through Hole	Polar	-40 C	105 ░C	Can Radial	0.492 in	12.5 mm	610 mA	42 mm
Chemi-Con EKWA451ELL101MU45S			100 µF	General Purpose	20 %	5000 Hrs	450 V	1.08 A	0.295 in	7.5 mm	Through Hole	Polar	-40 C	105 ░C	Can Radial	0.571 in	14.5 mm	720 mA		1.85 in	47 mm
