TOP234 Series

Catalog

IC OFFLINE SWITCH FLYBACK 8DIP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Package / Case	Package / Case	Package / Case	Supplier Device Package	Frequency - Switching [Min]	Frequency - Switching [Max]	Power (Watts)	Voltage - Breakdown	Fault Protection	Output Isolation	Control Features	Mounting Type	Duty Cycle
POWER INTEGRATIONS TOP234PN	-40 °C	150 °C	Flyback	7 Leads 8-DIP	7.62 mm	0.3 in	8-PDIP-B	66 kHz	132 kHz	30 Watts	700 V	Current Limiting Over Temperature Over Voltage	Isolated	Frequency Control	Through Hole	78 %

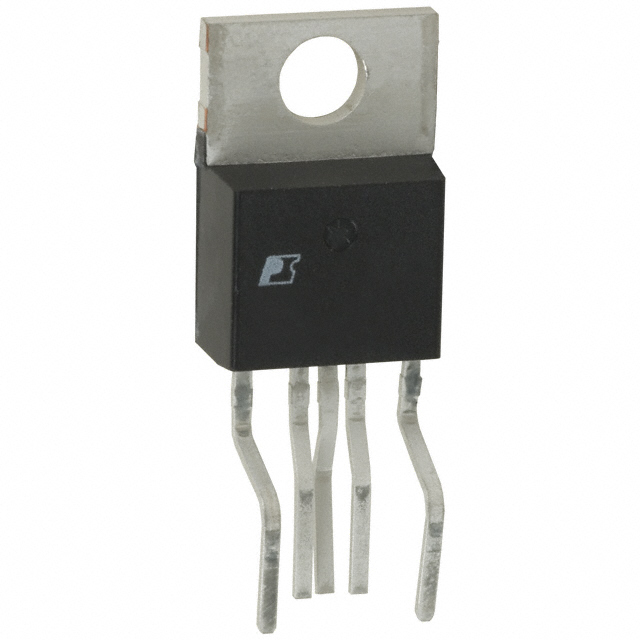

POWER INTEGRATIONS TOP234Y	-40 °C	150 °C	Flyback	TO-220-7 Formed Leads 5 Leads			TO-220-7B	66 kHz	132 kHz	75 W	700 V	Current Limiting Over Temperature Over Voltage	Isolated	Frequency Control	Through Hole	78 %
POWER INTEGRATIONS TOP234G	-40 °C	150 °C	Flyback	8-SMD (7 Leads) Gull Wing			SMD-8B	66 kHz	132 kHz	30 Watts	700 V	Current Limiting Over Temperature Over Voltage	Isolated	Frequency Control	Surface Mount	78 %
POWER INTEGRATIONS TOP234G-TL	-40 °C	150 °C	Flyback	8-SMD (7 Leads) Gull Wing			SMD-8B	66 kHz	132 kHz	30 Watts	700 V	Current Limiting Over Temperature Over Voltage	Isolated	Frequency Control	Surface Mount	78 %
