72F Series

Catalog

QUICK DISCONNECT TERMINAL 14-16AWG BRASS BLUE F TIN BOX

Part	Insulation Diameter	Insulation Diameter	Mounting Type	Tab Width [x]	Tab Width [x]	Tab Thickness	Tab Thickness	Terminal Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Color	Insulation	Gender	Tab Width	Tab Width	Features	Contact Finish	Contact Material

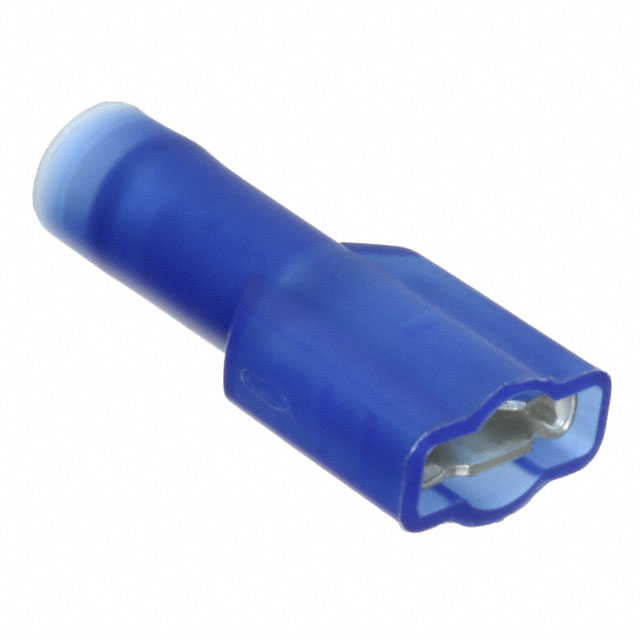

3M Electronic Specialty 72F-250-32-NBL	0.145 in	3.68 mm	Free Hanging (In-Line)	6.35 mm	0.25 in	0.81 mm	0.032 in	Standard	Crimp	14 AWG	16 AWG	0.86 "	21.84 mm	Blue	Fully Insulated	Female
3M Electronic Specialty 72F-110-20-P-A	0.145 in	3.68 mm	Free Hanging (In-Line)			0.51 mm	0.02 in	Standard	Crimp	14 AWG	16 AWG			Blue	Non-Mating End Insulated	Female	0.11 "	2.79 mm	Butted Seam
3M Electronic Specialty 72F-110-20-NB-A	0.145 in	3.68 mm	Free Hanging (In-Line)			0.51 mm	0.02 in	Standard	Crimp	14 AWG	16 AWG	0.8 "	20.32 mm	Blue	Non-Mating End Insulated	Female	0.11 "	2.79 mm		Tin	Brass
3M Electronic Specialty 72F-110-20-A			Free Hanging (In-Line)			0.51 mm	0.02 in	Standard	Crimp	14 AWG	16 AWG				Non-Insulated	Female	0.11 "	2.79 mm
