NTJ Series

Manufacturer: Chemi-Con

Catalog

SPECIALTY CERAMIC CAPACITORS 100VDC 4.7UF TOL 20% 6X5.3X3.8MM SINGLE STACK AEC-Q200

Part	Features	Temperature Coefficient	Applications	Package / Case	Thickness (Max)	Thickness (Max) [Max]	Voltage - Rated	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Lead Style	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max] [z]
Chemi-Con KTJ101B475M55AFT00	Low ESL	X7R	Bypass Decoupling	J-Lead SMD	3.8 mm	0.15 "	100 V	20 %	MLCC Surface Mount	0.236 in	0.209 in	6 mm	5.3 mm	J-Lead	4.7 µF	-55 C	125 °C
Chemi-Con KTJ250B476M76AFT00	Low ESL	X7R	Bypass Decoupling	J-Lead SMD	5.5 mm		25 VDC	20 %	MLCC Surface Mount	0.307 "	0.26 in	7.8 mm	6.6 mm	J-Lead	47 µF	-55 C	125 °C	0.217 in

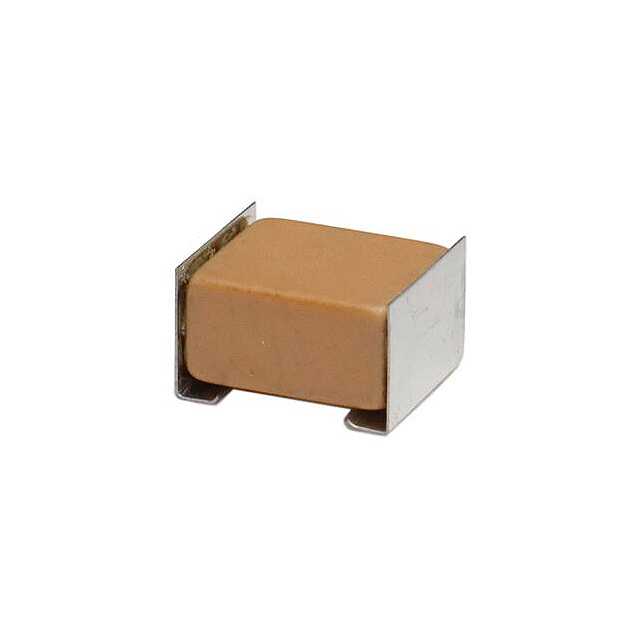

Chemi-Con KTJ350B476M76AFT00		X7R	SMPS Filtering	J-Lead SMD	5.5 mm		35 V	20 %	MLCC Surface Mount	0.307 "	0.26 in	7.8 mm	6.6 mm	J-Lead	47 µF	-55 C	125 °C	0.217 in

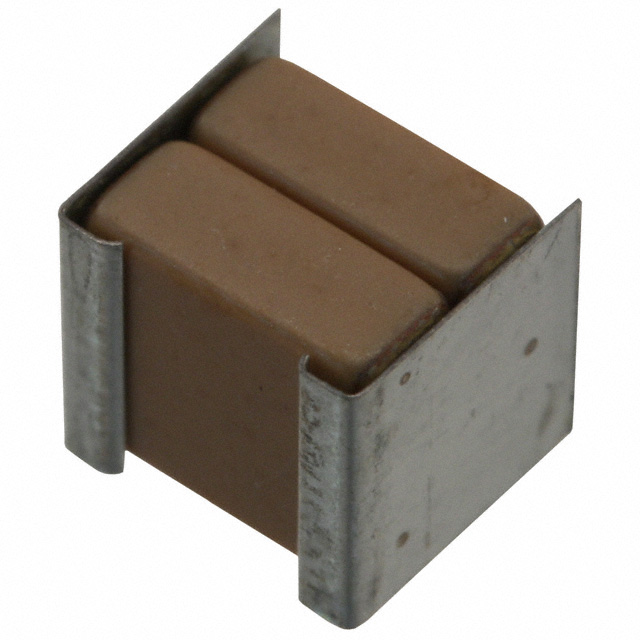

Chemi-Con KTJ101B156M55BFT00	Low ESL (Stacked)	X7R	Bypass Decoupling	Stacked SMD 2 J-Lead	5.5 mm		100 V	20 %	MLCC Surface Mount	0.236 in	0.209 in	6 mm	5.3 mm	J-Lead	15 µF	-55 C	125 °C	0.217 in
Chemi-Con KTJ250B476M55BFT00	Low ESL (Stacked)	X7R	Bypass Decoupling	Stacked SMD 2 J-Lead	5.5 mm		25 VDC	20 %	MLCC Surface Mount	0.236 in	0.209 in	6 mm	5.3 mm	J-Lead	47 µF	-55 C	125 °C	0.217 in
