SF-0603SPA Series
Manufacturer: Bourns Inc.
Beta
⌘K

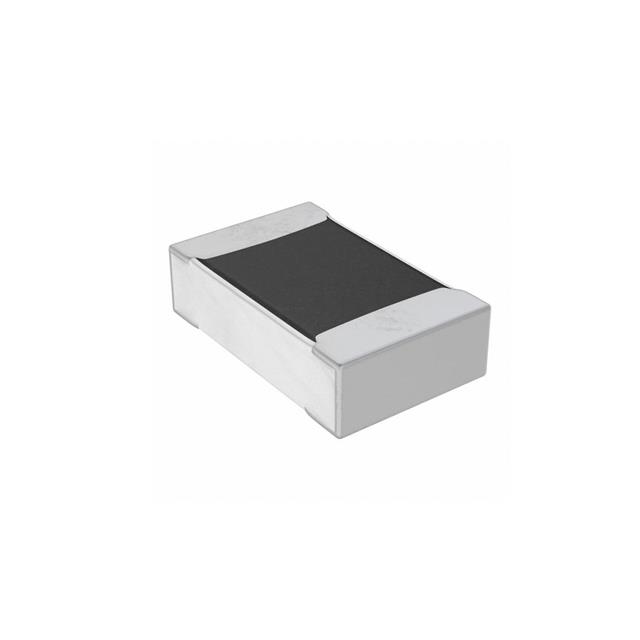

SMD FUSE, HIGH CURRENT, 7A, 63V, 0603 ROHS COMPLIANT: YES
| Part | Approval Agency | Melting I²t | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Package / Case | Package / Case | Mounting Type | Voltage Rating - DC | Response Time | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 cUL cURus TUV | 5.04 | -55 C | 150 °C | Board Mount (Cartridge Style Excluded) | 1608 Metric | 0603 | Surface Mount | 63 VDC | Fast Blow | 7 A | 50 A | 0.063 " | 0.7 mm | 1.6 mm | 0.028 " | 0.031 in | 0.8 mm | |
 Bourns Inc. | AEC-Q200 cUL cURus TUV | 0.71 | -55 C | 150 °C | Board Mount (Cartridge Style Excluded) | 1608 Metric | 0603 | Surface Mount | 63 VDC | Fast Blow | 3 A | 50 A | 0.063 " | 0.7 mm | 1.6 mm | 0.028 " | 0.031 in | 0.8 mm | 0.0159 Ohms |
