2000 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TRANSDUCER 4-20MA 100PSI

Part	Operating Pressure	Operating Pressure	Termination Style	Maximum Pressure	Maximum Pressure	Package / Case	Output [Min]	Output [Max]	Port Size	Port Size	Accuracy	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Pressure Type	Operating Temperature [Min]	Operating Temperature [Max]	Port Style	Applications	Port Size	Diameter - Protective Tube [diameter]	Temperature Range [Max]	Temperature Range [Min]	Terminal Type	Length - Lead Wire [x]	Length - Lead Wire [x]	Conductor Type	Element Type	RTD Material	Resistance Tolerance	Resistance @ 0°C	Mounting Type	Termination
TE Connectivity AMP Connectors 2000987	689.48 kPa	100 PSI	Connector	200 PSI	1378.95 kPa	Cylinder	4 mA	20 mA	0.4375 in 11.11 mm	Male	0.25 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	-40 C	100 °C	Threaded	Industrial Automation
TE Connectivity AMP Connectors 2000486	689.48 kPa	100 PSI	Cable	200 PSI	1378.95 kPa	Cylinder	4 mA	20 mA	0.25 "	Male NPT	1.5 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	-40 C	85 °C	Threaded	Industrial Automation	0.25 in

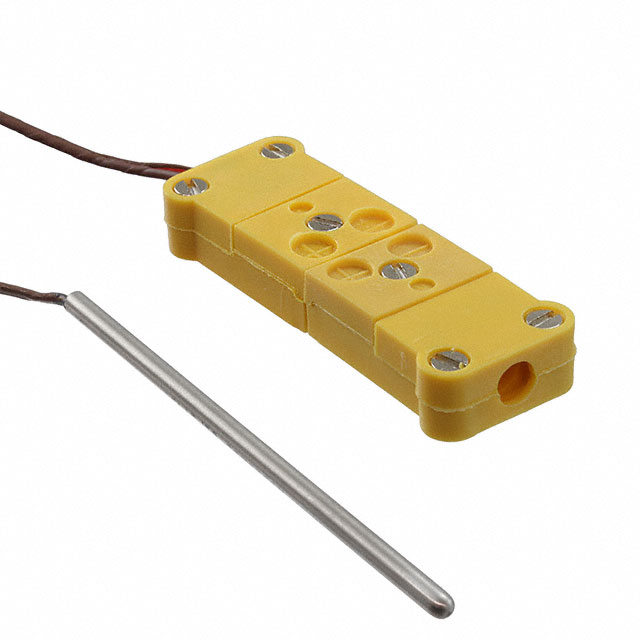

TE Connectivity AMP Connectors 20009210-01																						3.18 mm	250 °C	-50 °C	Exposed Lead Wires	914 mm	35.98 in	Non-Grounded	K - Type
TE Connectivity AMP Connectors 2000984	172.37 kPa	25 PSI	Connector	50 PSI	344.74 kPa	Cylinder	4 mA	20 mA	0.4375 in 11.11 mm	Male	0.25 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	-40 C	100 °C	Threaded	Industrial Automation

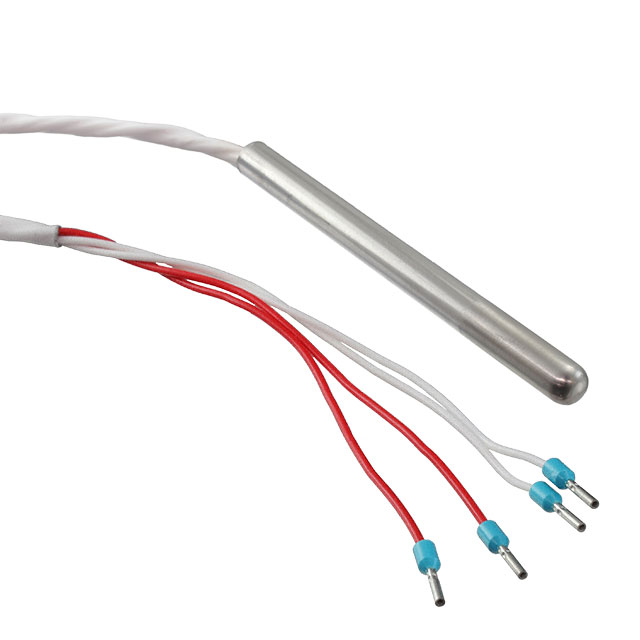

TE Connectivity AMP Connectors 20009209-01						Probe											-50 °C	250 °C												Platinum (Pt)	0.06 %	100 Ohms	Free Hanging	Wire Leads
TE Connectivity AMP Connectors 2000329	172.37 kPa	25 PSI	Cable/Wire Leads	50 PSI	344.74 kPa	Cylinder	4 mA	20 mA	0.25 "	Male NPT	1 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	-20 ░C	85 °C	Threaded	Industrial Automation	0.25 in

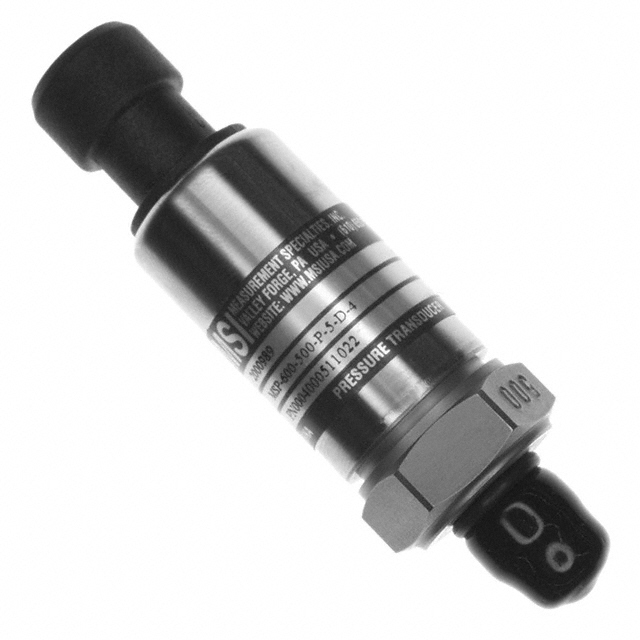

TE Connectivity AMP Connectors 2000989	3447.38 kPa	500 PSI	Connector	1000 PSI	6894.76 kPa	Cylinder	4 mA	20 mA	0.25 "	Male NPT	0.25 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	-40 C	100 °C	Threaded	Industrial Automation	0.25 in
TE Connectivity AMP Connectors 2000473	689.48 kPa	100 PSI	Cable	200 PSI	1378.95 kPa	Cylinder	0.5 V	4.5 V	0.25 "	Male NPT	1.5 %	Amplified Output Temperature Compensated			Analog Voltage	Vented Gauge	-40 C	85 °C	Threaded	Industrial Automation	0.25 in
TE Connectivity AMP Connectors 2000330	344.74 kPa	50 PSI	Cable/Wire Leads	100 PSI	689.48 kPa	Cylinder	1 V	5 V	0.25 "	Male NPT	1 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Voltage	Vented Gauge	-20 ░C	85 °C	Threaded	Industrial Automation	0.25 in
TE Connectivity AMP Connectors 2000316	172.37 kPa	25 PSI	Cable/Wire Leads	50 PSI	344.74 kPa	Cylinder	4 mA	20 mA	0.25 "	Male NPT	1 %	Amplified Output Temperature Compensated	10 VDC	30 VDC	Analog Current	Vented Gauge	-20 ░C	85 °C	Threaded	Industrial Automation	0.25 in
