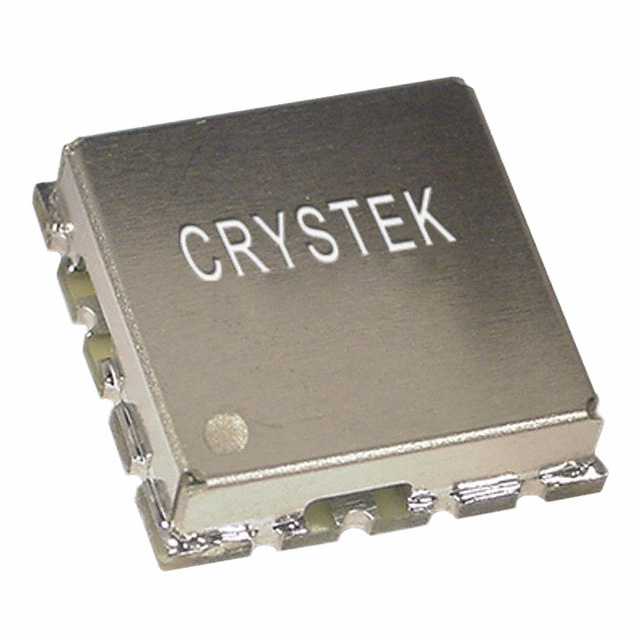

CVCO55CL Series

Catalog

VCO 1200MHZ 0-8V 12.7X12.7MM

Part	Tuning Voltage (VDC) [Min]	Tuning Voltage (VDC) [Max]	Power (dBm)	Phase Noise Typ (dBc/Hz)	Icc Max [Max]	Frequency Range [Min]	Frequency Range [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Frequency - Center	Voltage - Supply	Height	Height	Pushing (MHz/V)	2nd Harmonic, Typ (dBc)	Icc Max
Crystek Corporation CVCO55CL-1188-1212	0 V	8 V	8 dBm	-110 dBc/Hz	20 mA	1188 MHz	1212 MHz	85 °C	-40 C	12.7 mm	12.7 mm	16-QFN Variant	1.2 GHz	12 VDC	0.15 in	3.81 mm	1 MHz/V	-20 dBc
Crystek Corporation CVCO55CL-0467-0493	0.5 V	4.5 V	3 dBm	-110 dBc/Hz		467 MHz	493 MHz	85 °C	-40 C	12.7 mm	12.7 mm	16-QFN Variant	480 MHz		0.15 in	3.81 mm		-12 dBc	15 mA
Crystek Corporation CVCO55CL-0184-0190	0 V	5 V	0 dBm	-112 dBc/Hz		184 MHz	190 MHz	85 °C	-40 C	12.7 mm	12.7 mm	16-QFN Variant	187 MHz		0.15 in	3.81 mm	1 MHz/V	-15 dBc	7 mA
Crystek Corporation CVCO55CL-1360-1380	0.3 V	4.7 V	6 dBm	-105 dBc/Hz	30 mA	1360 MHz	1380 MHz	85 °C	-40 C	12.7 mm	12.7 mm	16-QFN Variant	1370 MHz	8 V	0.15 in	3.81 mm	3 MHz/V	-15 dBc
Crystek Corporation CVCO55CL-0640-0690	0.3 V	4.7 V	6.5 dBm	-100 dBc/Hz	25 mA	640 MHz	690 MHz	85 °C	-40 C	12.7 mm	12.7 mm	16-QFN Variant	665 MHz		0.15 in	3.81 mm	1 MHz/V	-12 dBc
