60-4 Series
Manufacturer: Ohmite
Beta
⌘K

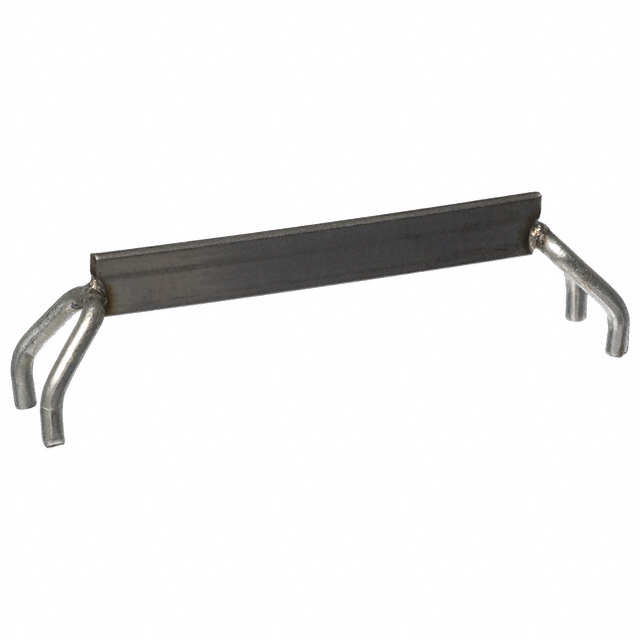

CURRENT SENSE RESISTORS - THROUGH HOLE 5WATT .005OHM 1% 5 TERMINAL
| Part | Number of Terminations | Supplier Device Package | Features | Tolerance | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Resistance | Composition | Temperature Coefficient | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 4 | Radial Lead | Current Sense Non-Inductive | 1 % | Radial | -55 C | 275 °C | 5 W | 35.56 mm | 1.4 in | 6.35 mm | 0.25 in | 5 mOhms | Metal Element | 100 ppm/°C | 0.45 " | 11.43 mm | |||
 Ohmite | 4 | Current Sense Non-Inductive | 1 % | Radial | -55 C | 275 °C | 1 W | 1.1 " | 15 mOhms | Metal Element | 50 ppm/░C | 5.46 mm | 0.215 in | 5.08 mm | ||||||
 Ohmite | 4 | Current Sense Non-Inductive | 1 % | Radial | -55 C | 275 °C | 1 W | 1.1 " | 25 mOhms | Metal Element | 50 ppm/░C | 5.46 mm | 0.215 in | 5.08 mm |
