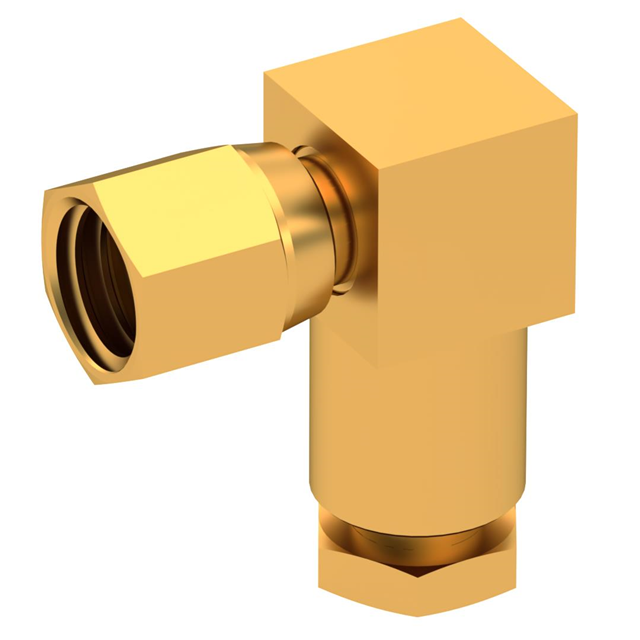

1005-1541 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC F RA NA SDCL .086
| Part | Includes | Body Material | Insertion Loss | Center Contact Plating | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mating Cycles | Cable Group | Impedance | Mounting Type | Housing Color | Connector Type | Connector Style | Center Contact Material | Fastening Type | Frequency - Max [Max] | Contact Termination | Shield Termination | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Ferrule | Brass | 0.5 dB | Gold | Polytetrafluoroethylene (PTFE) | 105 ░C | -65 ░C | Gold | 500 | RG-405 (.085" Semi Rigid) | 50 Ohms | Free Hanging (In-Line) Right Angle | Gold | Female Socket Plug | SMC | Beryllium Copper | Threaded | 10 GHz | Solder | Clamp | 1 |
