BYM300 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 650V 40A 20MW

Part	Power - Max [Max]	NTC Thermistor	IGBT Type	Supplier Device Package	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Vce(on) (Max) @ Vge, Ic [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Configuration	Input	Operating Temperature

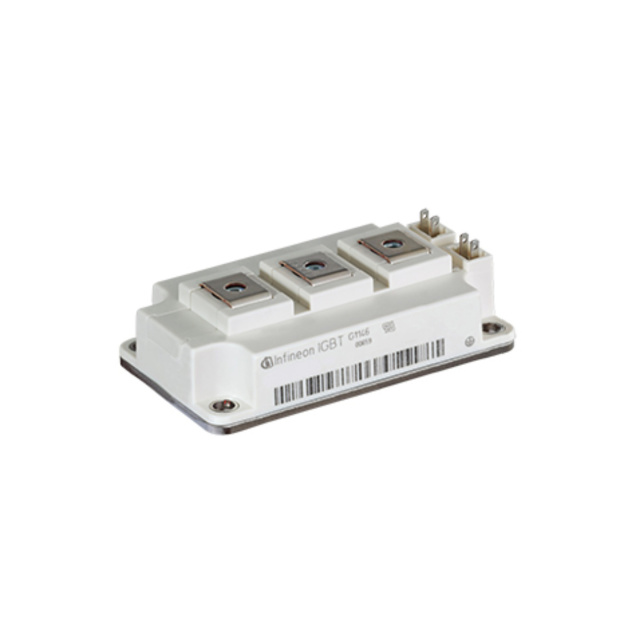

INFINEON BYM300B170DN2HOSA1	20 mW		Trench Field Stop	Module	2.8 nF	-40 °C	150 °C	Chassis Mount	1.55 V	Module	40 A	650 V	40 µA	2 Independent	Standard
INFINEON BYM300A120DN2HOSA1	1000 W			Module				Chassis Mount		Module	450 A	1200 V		Single	Standard	150 °C
