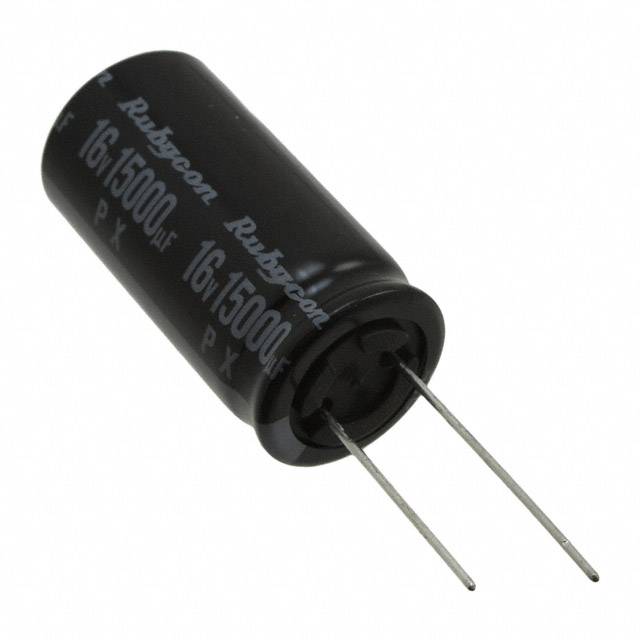

PX Series

Manufacturer: Rubycon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED GENERAL PURPOSE ELECTROLYTIC CAPACITORS

Part	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance	Capacitance	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Applications	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Polarization	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]

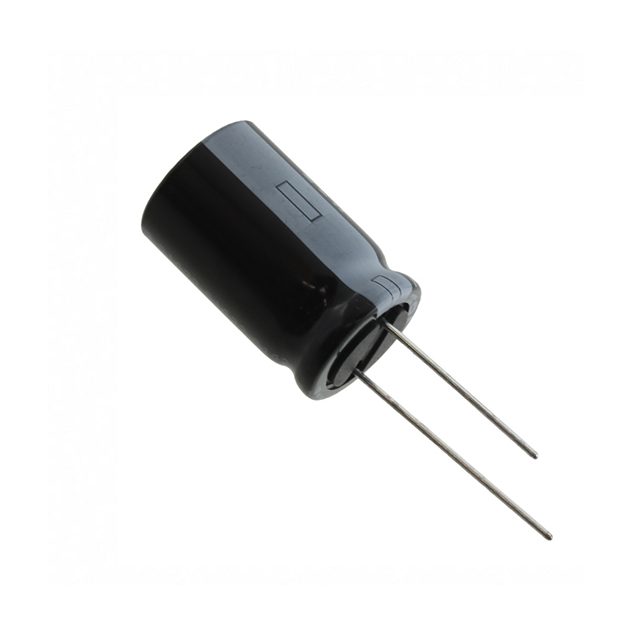

Rubycon 50PX3300MEFC18X35.5	0.295 in	7.5 mm	0.709 in	18 mm	Through Hole	20 %	3.3 mF	Can Radial	37 mm	1.457 in	General Purpose	1.78 A	-55 C	105 ░C	2000 Hrs	2.047 A	Polar	50 VDC

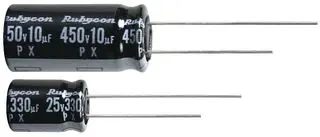

Rubycon 100PX220MEFC12.5X20	0.197 "	5 mm	0.492 in	12.5 mm	Through Hole	20 %	220 µF	Can Radial			General Purpose	560 mA	-55 C	105 ░C	2000 Hrs	672 mA	Polar	100 V	0.846 "	21.5 mm

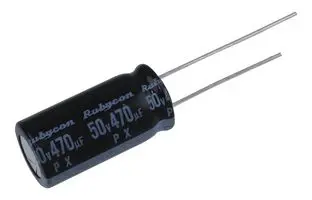

Rubycon 50PX470MEFC10X20	0.197 "	5 mm	0.394 in	10 mm	Through Hole	20 %	470 µF	Can Radial			General Purpose	600 mA	-55 C	105 ░C	2000 Hrs	720 mA	Polar	50 VDC			0.866 in	22 mm
Rubycon 50PX47MEFC6.3X11	0.098 in	2.5 mm	0.248 "	6.3 mm	Through Hole	20 %	47 µF	Can Radial			General Purpose	115 mA	-55 C	105 ░C	1000 Hrs	172.5 mA	Polar	50 VDC		0.492 in			12.5 mm
Rubycon 250PX4R7MEFC8X11.5	0.138 in	3.5 mm	0.315 in	8 mm	Through Hole	20 %	4.7 µF	Can Radial			General Purpose	45 mA	-40 C	105 ░C	1000 Hrs	67.5 mA	Polar	250 V	0.531 in	13.5 mm
Rubycon 100PX680MEFC16X31.5	0.295 in	7.5 mm	0.63 in	16 mm	Through Hole	20 %	680 µF	Can Radial			General Purpose	900 mA	-55 C	105 ░C	2000 Hrs	1.08 A	Polar	100 V						1.299 in	33 mm
Rubycon 160PX22MEFC10X12.5	0.197 "	5 mm	0.394 in	10 mm	Through Hole	20 %	22 µF	Can Radial			General Purpose	92 mA	-40 C	105 ░C	2000 Hrs	138 mA	Polar	160 V	0.571 "	14.5 mm
Rubycon 10PX330MEFC6.3X11	0.098 in	2.5 mm	0.248 "	6.3 mm	Through Hole	20 %	330 µF	Can Radial			General Purpose	235 mA	-55 C	105 ░C	1000 Hrs	282 mA	Polar	10 V		0.492 in			12.5 mm
Rubycon 100PX47MEFC8X11.5	0.138 in	3.5 mm	0.315 in	8 mm	Through Hole	20 %	47 µF	Can Radial		0.512 "	General Purpose	185 mA	-55 C	105 ░C	1000 Hrs	277.5 mA	Polar	100 V						13 mm
Rubycon 35PX6800MEFC18X35.5	0.295 in	7.5 mm	0.709 in	18 mm	Through Hole	20 %	6800 µF	Can Radial		1.476 in	General Purpose	1.92 A	-55 C	105 ░C	2000 Hrs	2.208 A	Polar	35 V						37.5 mm
