4038-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

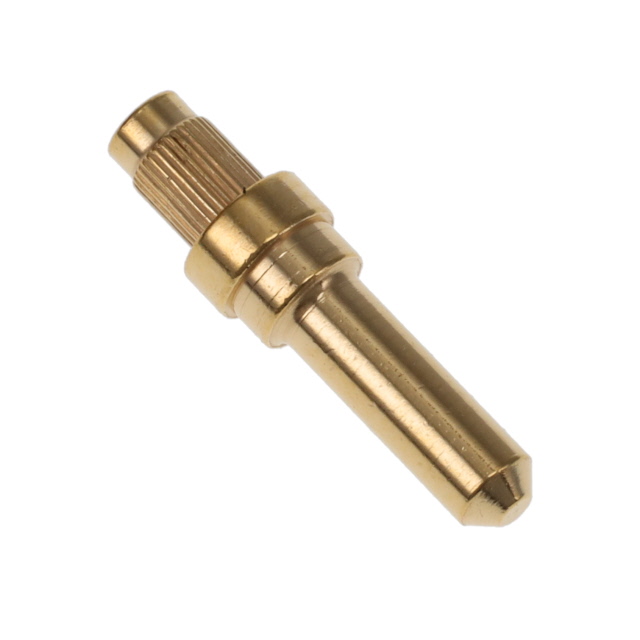

PRESS-FIT PCB PIN
| Part | Length - Overall [x] | Length - Overall [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Mounting Type | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Terminal Type | Terminal Style | Insulation | Termination | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 11.94 mm | 0.47 in | 0.25 Ám | 10 Áin | 0.125 " | 3.18 mm | 0.125 in | 3.18 mm | 0.081 in | 2.06 mm | Gold | Through Hole | 2.03 mm | 0.08 in | 0.2 in | 5.08 mm | 0.075 in | 1.91 mm | PC Pin | Single End | Non-Insulated | Knurled Press-Fit | Brass Alloy |
