T41314 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

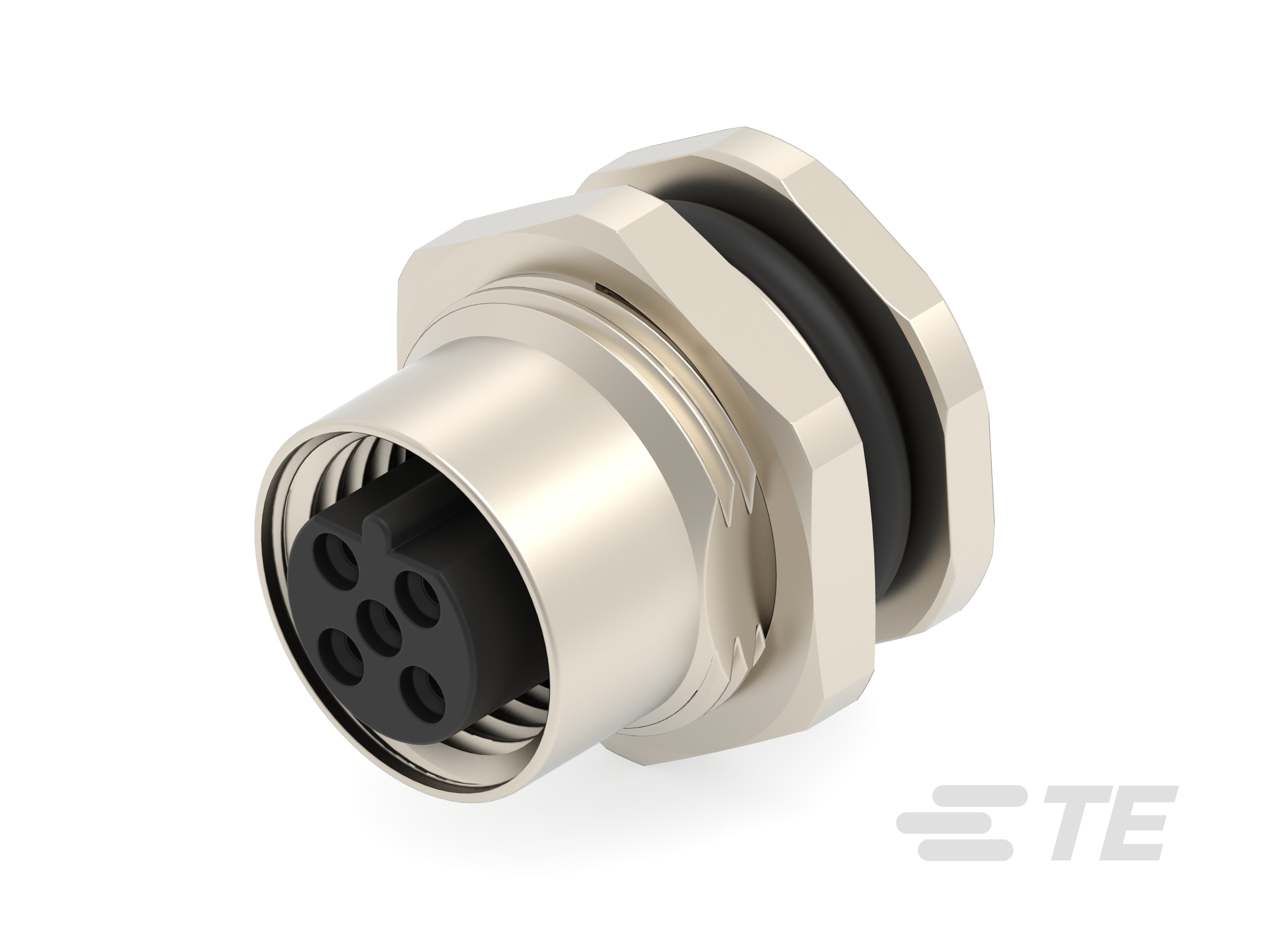

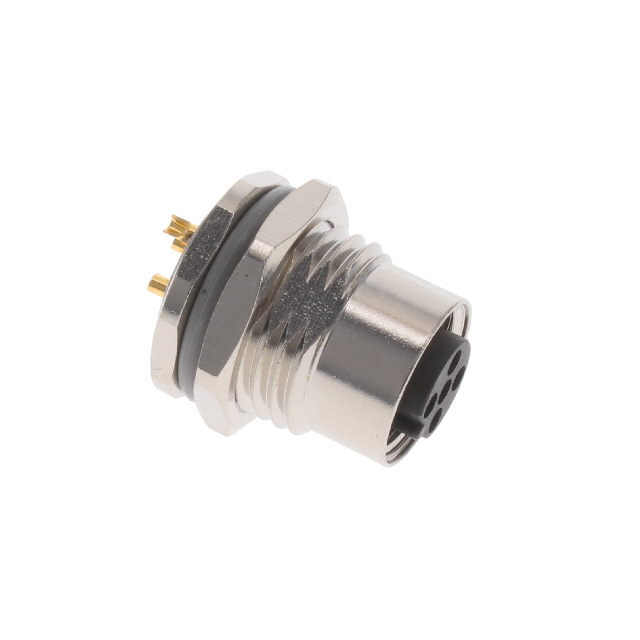

SENSOR CONNECTOR, M12, FEMALE, 4 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Contact Material | Applications | Shell Size - Insert | Current Rating (Amps) | Connector Type | Ingress Protection | Color | Orientation | Shielding | Voltage Rating | Primary Material | Mounting Type | Shell Material | Shell Finish | Material Flammability Rating | Number of Positions | Mounting Feature | Fastening Type | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | M12-4 | 4 A | Plug Female Sockets | IP67 - Dust Tight Waterproof | Silver | B | Unshielded | 250 V | Metal | Panel Mount | Copper Alloy | Nickel | UL94 V-0 | 4 | Bulkhead - Front Side Nut | Threaded | Gold | 85 °C | -30 ░C |
 TE Connectivity AMP Connectors | 0.076 µm | 3 µin | Nylon 6/6 Polyamide (PA66) | Copper Alloy | Industrial | M12-3 | 4 A | Plug Female Sockets | IP67 - Dust Tight Waterproof | Silver | B | Unshielded | 250 V | Metal | Panel Mount | Copper Alloy | Nickel | UL94 V-0 | Bulkhead - Front Side Nut | Threaded | Gold | 85 °C | -30 ░C |
