R16141 Series

Catalog

N / 3/4 INCH SQUARE FLANGE JACK

Part	Body Material	Insertion Loss	Dielectric Material	Voltage Rating	Center Contact Plating	Mating Cycles	Body Finish	Connector Type	Fastening Type	Shield Termination	Contact Termination	Number of Ports	Ingress Protection	Connector Style	Housing Color	Mounting Feature	Impedance	Mounting Type	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features
Radiall USA, Inc. R161410000W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	850 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder	1	IP67 - Dust Tight Waterproof	N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Bronze	11 GHz

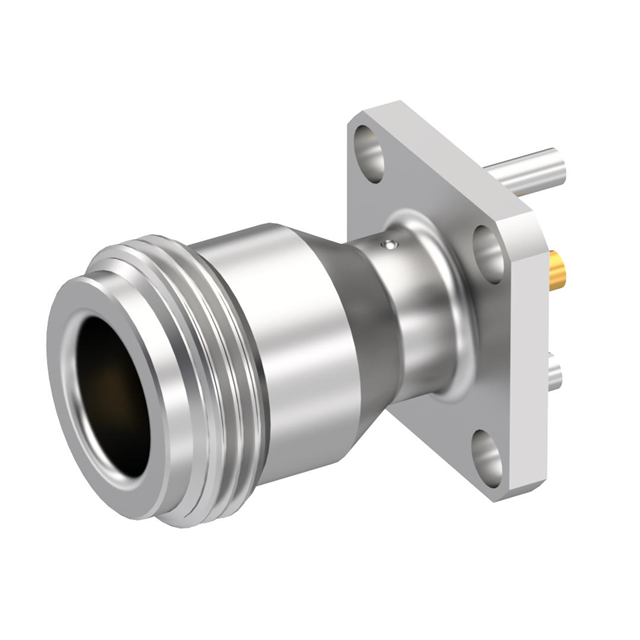

Radiall USA, Inc. R161411500	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	500 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder Tab	1	IP67 - Dust Tight Waterproof	N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C

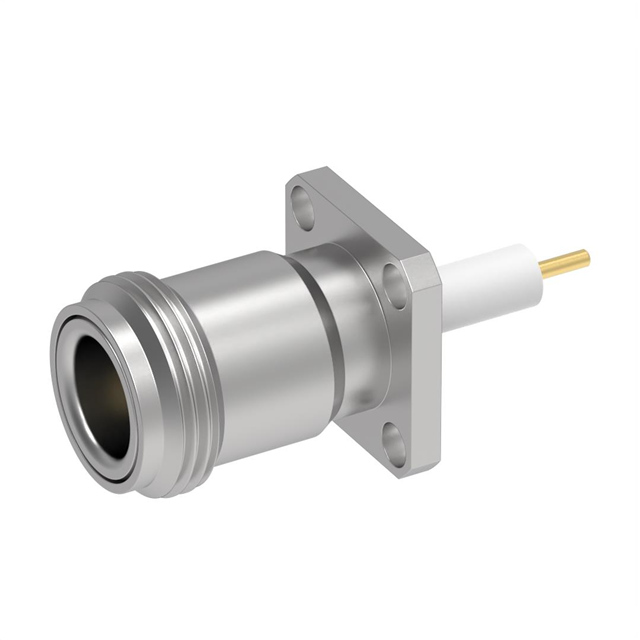

Radiall USA, Inc. R161418130	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	500 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder	1	IP67 - Dust Tight Waterproof	N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C	Extended Insulation
Radiall USA, Inc. R161419300W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	1400 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder	1	IP67 - Dust Tight Waterproof	N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C
Radiall USA, Inc. R161419300	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	1400 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder	1	IP67 - Dust Tight Waterproof	N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C

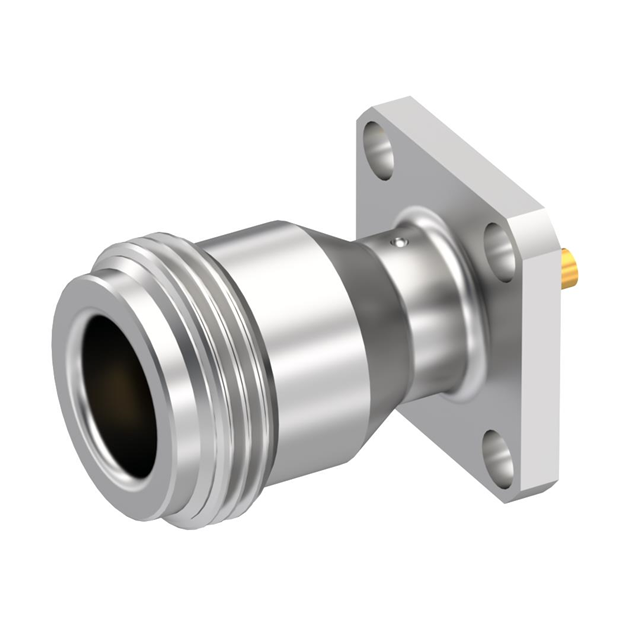

Radiall USA, Inc. R161410000	Brass		Polytetrafluoroethylene (PTFE)	850 V	Gold	500		Female Socket Jack	Threaded	Solder	Solder	1		N Type		Flange	50 Ohms	Panel Mount	Bronze	11 GHz
Radiall USA, Inc. R161410520W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	1400 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder	1		N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C	Extended Insulation

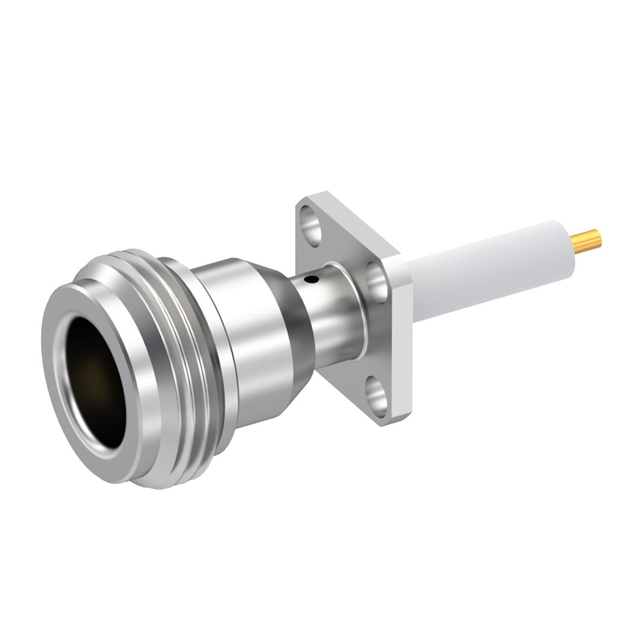

Radiall USA, Inc. R161410520	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	1400 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder	1		N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C	Extended Insulation

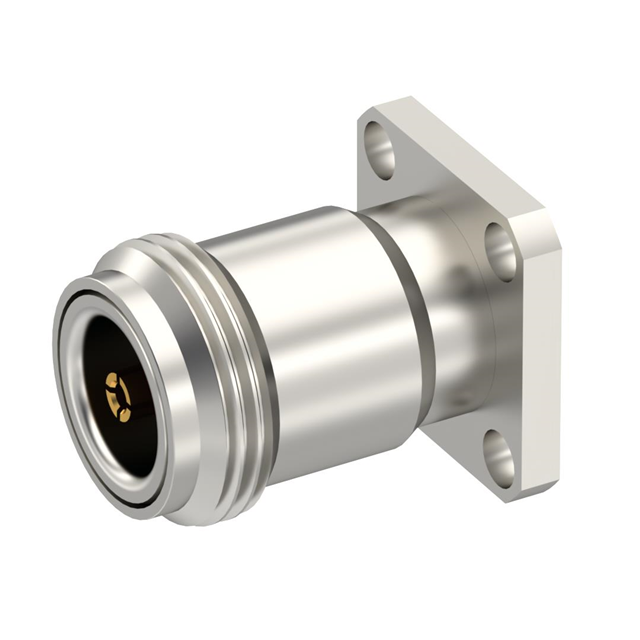

Radiall USA, Inc. R161410130	Brass		Polytetrafluoroethylene (PTFE)	1400 V	Gold	500	Nickel	Female Socket Jack	Threaded	Solder	Solder	1		N Type	Silver	Flange	50 Ohms	Panel Mount	Beryllium Copper	11 GHz	155 C	-55 C	Extended Insulation
Radiall USA, Inc. R161419020W	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	1400 V	Gold	500	White Bronze	Female Socket Jack	Threaded	Solder	Solder Tab	1		N Type	Silver	Flange	50 Ohms	Panel Mount Through Hole	Beryllium Copper	11 GHz	155 C	-55 C
