172258 Series

Manufacturer: Molex

Catalog

CONN RCPT HSG 6POS 3.50MM

Part	Insulation Material	Note	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Fastening Type	Number of Positions	Number of Rows	Features	Contact Termination	Color	Row Spacing	Row Spacing	Connector Type	Contact Type	Mounting Type	Number of Positions

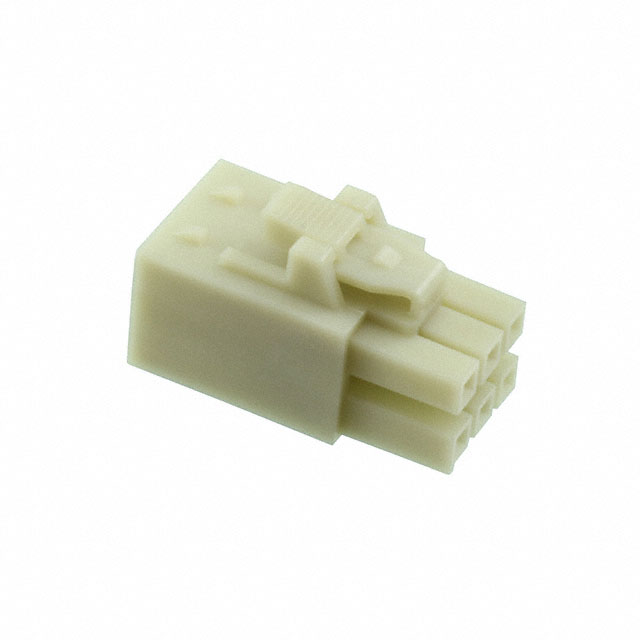

Molex 1722582106	Nylon Polyamide (PA)	Contacts Not Included	-40 °C	120 °C	3.5 mm	0.138 in	Latch Lock	6	2	Terminal Position Lock (TPA) Notched	Crimp	Natural	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)
Molex 1722582116		Contacts Not Included			3.5 mm	0.138 in	Latch Lock		2	Terminal Position Lock (TPA) Notched	Crimp	Natural	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)	16
Molex 1722581112		Contacts Not Included			3.5 mm	0.138 in	Latch Lock	12	2	Terminal Position Lock (TPA) Notched	Crimp	Black	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)
Molex 1722583104	Nylon Polyamide (PA)	Contacts Not Included	-40 °C	105 ░C	3.5 mm	0.138 in	Latch Lock	4	2	Glow Wire Compliant Terminal Position Lock (TPA)	Crimp	Black	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)

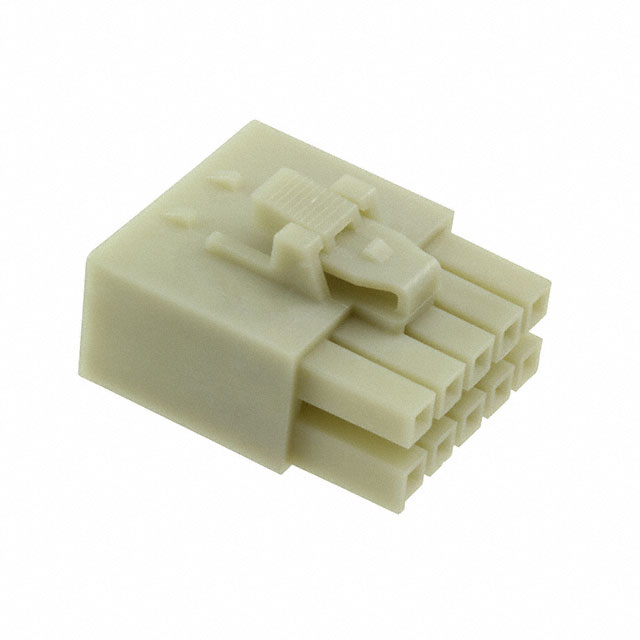

Molex 1722582110		Contacts Not Included			3.5 mm	0.138 in	Latch Lock	10	2	Terminal Position Lock (TPA) Notched	Crimp	Natural	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)

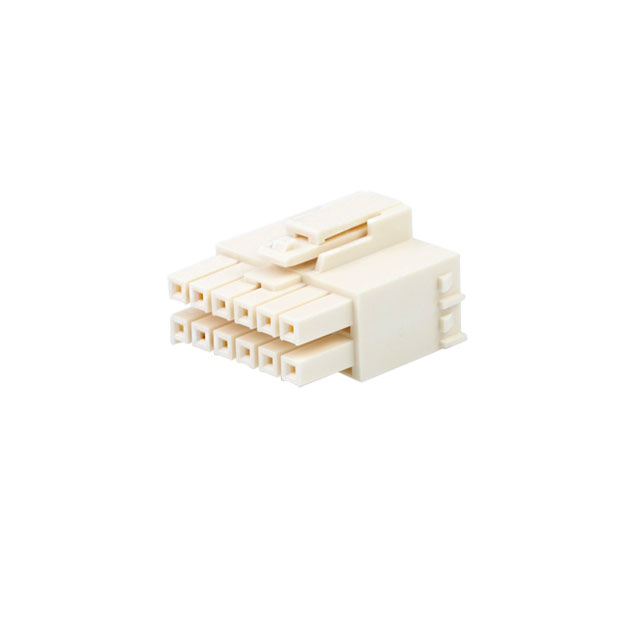

Molex 1722584112	Nylon Polyamide (PA)	Contacts Not Included	-40 °C	105 ░C	3.5 mm	0.138 in	Latch Lock	12	2	Glow Wire Compliant Terminal Position Lock (TPA)	Crimp	Natural	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)
Molex 1722582108	Nylon Polyamide (PA)	Contacts Not Included	-40 °C	120 °C	3.5 mm	0.138 in	Latch Lock	8	2	Terminal Position Lock (TPA) Notched	Crimp	Natural	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)
Molex 1722584116	Nylon Polyamide (PA)	Contacts Not Included	-40 °C	105 ░C	3.5 mm	0.138 in	Latch Lock		2	Glow Wire Compliant Terminal Position Lock (TPA)	Crimp	Natural	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)	16

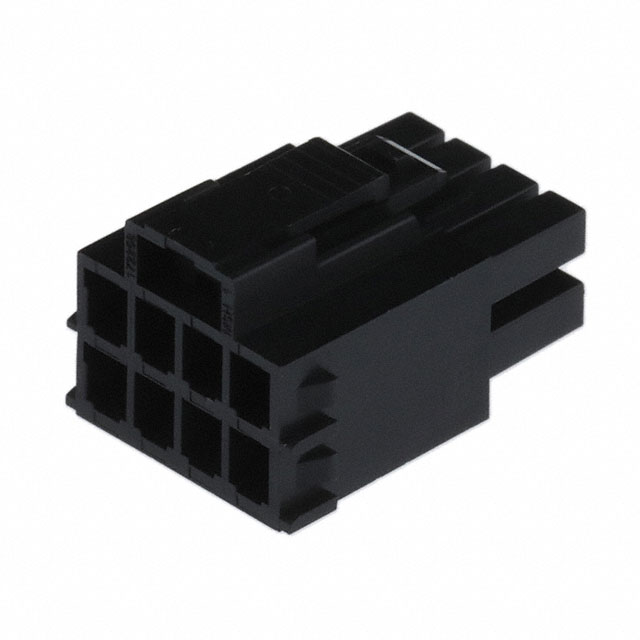

Molex 1722583108	Nylon Polyamide (PA)	Contacts Not Included	-40 °C	105 ░C	3.5 mm	0.138 in	Latch Lock	8	2	Glow Wire Compliant Terminal Position Lock (TPA)	Crimp	Black	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)

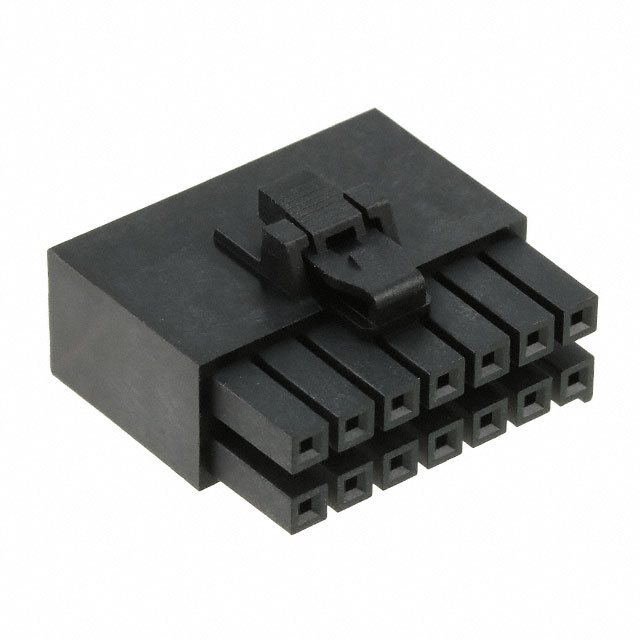

Molex 1722581014		Contacts Not Included			3.5 mm	0.138 in	Latch Lock	14	2		Crimp	Black	4.6 mm	0.181 in	Receptacle	Female Socket	Free Hanging (In-Line)
