0306-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Contact Material	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Min] [diameter]	Length - Overall	Length - Overall	Socket Depth	Socket Depth	Tail Type	Flange Diameter [diameter]	Flange Diameter [diameter]	Accepts Square Pin Size	Accepts Square Pin Size	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]
Mill-Max Manufacturing Corp. 0306-0-19-80-16-80-10-0	-55 C	125 °C	200 Áin	5.08 Ám	Tin	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm

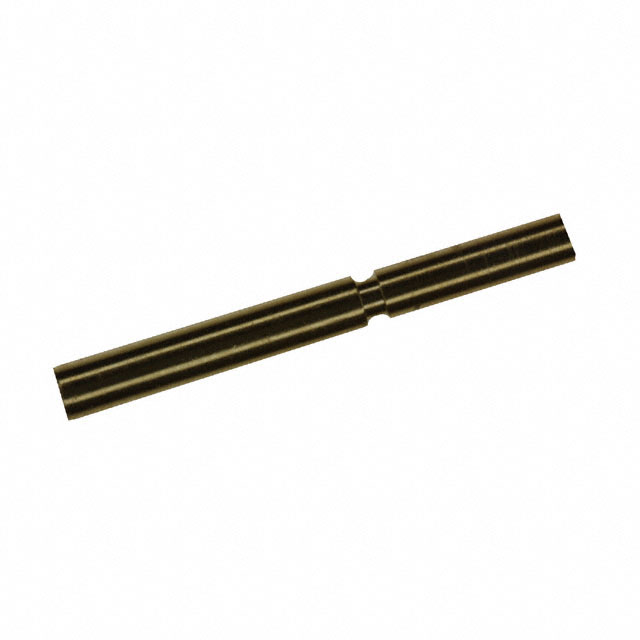

Mill-Max Manufacturing Corp. 0306-0-19-15-16-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Gold	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0306-0-19-01-16-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Gold	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0306-0-19-80-16-14-10-0	-55 C	125 °C	10 Áin	0.25 Ám	Gold	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0306-0-19-80-16-27-10-0	-55 C	125 °C	30 Áin	0.76 Ám	Gold	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0306-0-19-01-16-01-10-0	-55 C	125 °C	200 Áin	5.08 Ám	Tin-Lead	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0306-0-19-01-16-14-10-0	-55 C	125 °C	10 Áin	0.25 Ám	Gold	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
Mill-Max Manufacturing Corp. 0306-0-19-15-16-14-10-0	-55 C	125 °C	10 Áin	0.25 Ám	Gold	Solder	Beryllium Copper	0.86 mm	0.034 "	0.022 "	0.56 mm	0.665 in	16.89 mm	0.28 in	7.11 mm	Crimp	0.075 in	1.91 mm	0.025 in	0.64 mm	0.051 in	1.3 mm
