G8JN Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

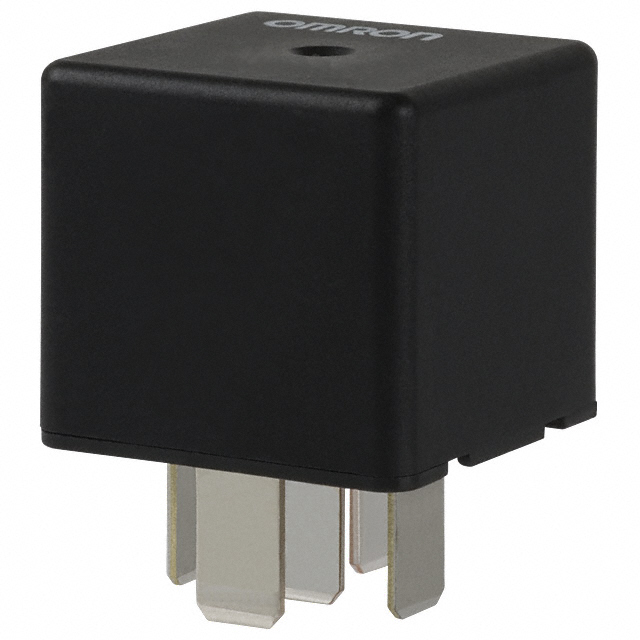

RELAY AUTOMOTIVE SPST 35A 12V
| Part | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Must Release Voltage | Coil Voltage | Switching Voltage | Coil Resistance | Contact Material | Operate Time | Features | Coil Type | Mounting Type | Must Operate Voltage | Termination Style | Contact Rating (Current) | Coil Power |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 10 ms | 125 °C | -40 °C | SPST-NO (1 Form A) | 1 VDC | 12 VDC | 16 VDC | 68 Ohms | Silver Tin Oxide (AgSnO) | 10 ms | Resistor | Non Latching | Socketable | 8 VDC | Plug In Quick Connect - 0.250" (6.3mm) | 35 A | 1.9 W |
