RNF-100 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

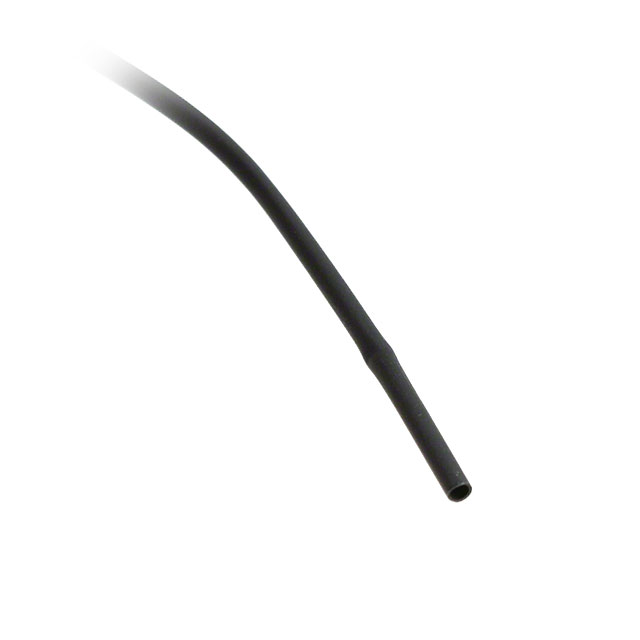

HEATSHRINK 1/8" BLACK

Part	Shelf Life	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Material	Shrink Temperature	Color	Inner Diameter - Recovered	Length [x]	Length [x]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-BK-SP-CS5868	144 Months	Tubing Flexible	135 °C	-55 °C	1.57 mm	0.062 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	3.18 mm	0.125 "	2 to 1	0.02 in	0.51 mm	Polyolefin (PO) Irradiated	95 °C	Black
TE Connectivity Aerospace, Defense and Marine RNF-100-1/4-BN-STK	144 Months	Tubing Flexible	135 °C	-55 °C		0.125 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	6.35 mm	0.25 in	2 to 1			Polyolefin (PO) Irradiated	95 °C	Brown	3.18 mm	1.22 m	4 ft	0.025 "	0.64 mm
TE Connectivity Aerospace, Defense and Marine RNF-100-1-WH-STK-CS6162	144 Months	Tubing Flexible	135 °C	-55 °C	12.7 mm	0.5 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	25.4 mm	1 in	2 to 1	0.035 in	0.89 mm	Polyolefin (PO) Irradiated	95 °C	White		1.22 m	4 ft
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-BK-STK-CS8794	144 Months	Tubing Flexible	135 °C	-55 °C	1.57 mm	0.062 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	3.18 mm	0.125 "	2 to 1	0.02 in	0.51 mm	Polyolefin (PO) Irradiated	95 °C	Black		1.22 m	4 ft
TE Connectivity Aerospace, Defense and Marine RNF-100-3/16-WH-SP-CS7807	144 Months	Tubing Flexible	135 °C	-55 °C			Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	4.75 mm	0.187 in	2 to 1	0.02 in	0.51 mm	Polyolefin (PO) Irradiated	95 °C	White	2.36 mm					0.093 in
TE Connectivity Aerospace, Defense and Marine RNF-100-1/4-WH-STK-CS5529	144 Months	Tubing Flexible	135 °C	-55 °C		0.125 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	6.35 mm	0.25 in	2 to 1			Polyolefin (PO) Irradiated	95 °C	White	3.18 mm	1.22 m	4 ft	0.025 "	0.64 mm

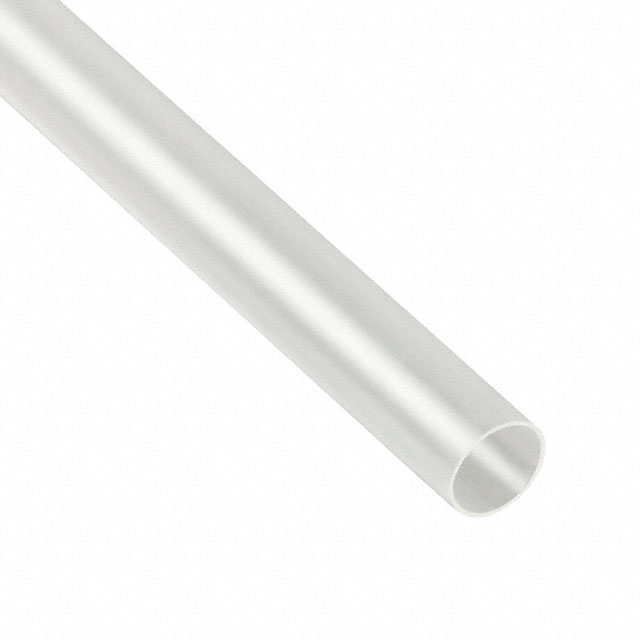

TE Connectivity Aerospace, Defense and Marine RNF-100-1/2-CL-SP-CS6162	144 Months	Tubing Flexible	135 °C	-55 °C	6.35 mm	0.25 in	Abrasion and Cut Resistant Fluid Resistant Solvent Resistant Strain Resistant	12.7 mm	0.5 in	2 to 1			Polyolefin (PO) Irradiated	95 °C	Clear				0.025 "	0.64 mm

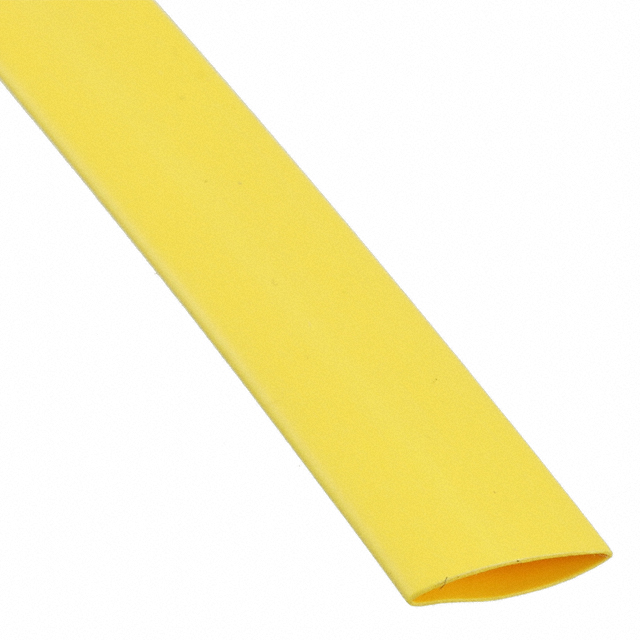

TE Connectivity Aerospace, Defense and Marine RNF-100-3/8-YO-STK-CS6162	144 Months	Tubing Flexible	135 °C	-55 °C	4.75 mm	0.187 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	9.53 mm	0.375 in	2 to 1			Polyolefin (PO) Irradiated	95 °C	Yellow		1.22 m	4 ft	0.025 "	0.64 mm
TE Connectivity Aerospace, Defense and Marine RNF-100-1/8-CL-SP-CS7312	144 Months	Tubing Flexible	135 °C	-55 °C	1.57 mm	0.062 in	Abrasion and Cut Resistant Fluid Resistant Solvent Resistant Strain Resistant	3.18 mm	0.125 "	2 to 1	0.02 in	0.51 mm	Polyolefin (PO) Irradiated	95 °C	Clear
TE Connectivity Aerospace, Defense and Marine RNF-100-2-BK-SP-CS5004	144 Months	Tubing Flexible	135 °C	-55 °C	25.4 mm	1 in	Abrasion and Cut Resistant Flame Retardant Fluid Resistant Solvent Resistant Strain Resistant	50.8 mm	2 in	2 to 1	0.045 in	1.14 mm	Polyolefin (PO) Irradiated	95 °C	Black							35 °C	0 °C
