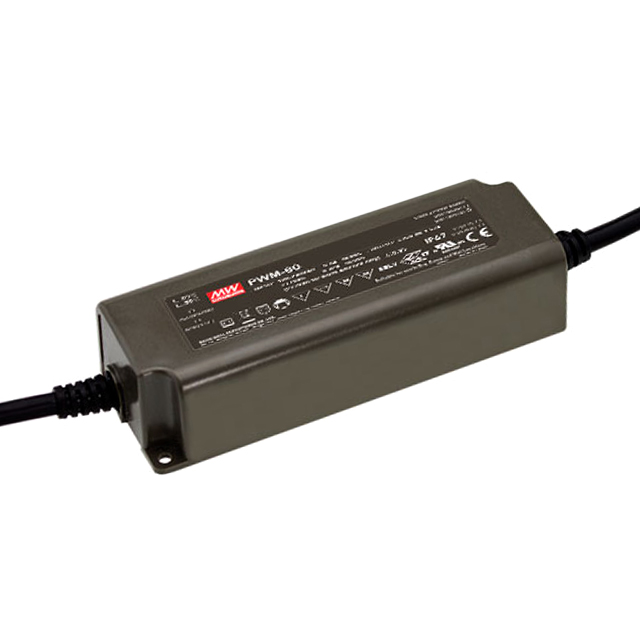

PWM-60 Series

Catalog

O/P +24V2.5A

Part	Mounting Type	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Efficiency	Current - Output (Max) [Max]	Dimming	Topology	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Termination Style	Features	Power (Watts)	Ratings	Approval Agency	Voltage - Output	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max)

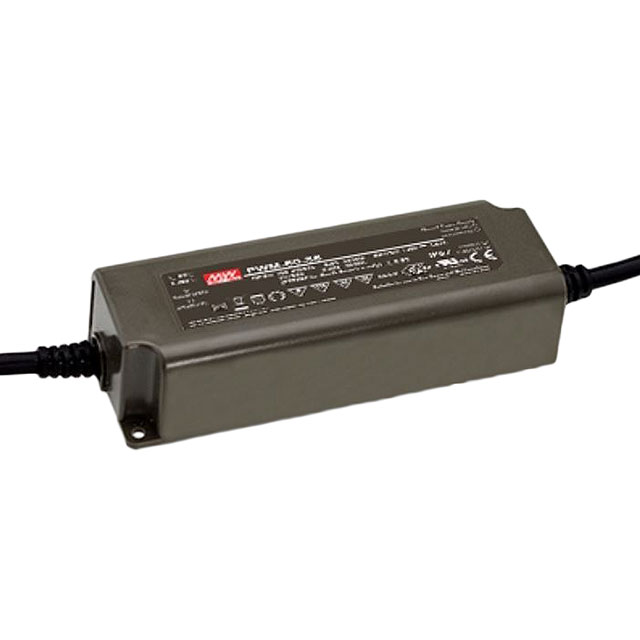

MEAN WELL USA Inc. PWM-60-24DA	Chassis Mount	Constant Voltage	305 VAC	3750 VDC	89 %	2.5 A	DALI	AC DC Converter	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	Wire Leads	OCP OTP OVP SCP	60 W	IP67	CB CCC CE cURus EAC ENEC	24 V	1	90 VAC	85 °C	-40 C
MEAN WELL USA Inc. PWM-60-48	Chassis Mount	Constant Voltage	305 VAC	3750 VDC	90 %	1.25 A	Analog PWM	AC DC Converter	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	Wire Leads	OCP OTP OVP SCP	60 W	IP67	CB CCC CE cURus ENEC	48 V	1	90 VAC	85 °C	-40 C
MEAN WELL USA Inc. PWM-60-36	Chassis Mount	Constant Voltage	305 VAC	3750 VDC	90 %	1.67 A	Analog PWM	AC DC Converter	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	Wire Leads	OCP OTP OVP SCP	60 W	IP67	CB CCC CE cURus ENEC	36 V	1	90 VAC	85 °C	-40 C
MEAN WELL USA Inc. PWM-60-12	Chassis Mount	Constant Voltage	305 VAC	3750 VDC	86 %		Analog PWM	AC DC Converter	2.09 "	1.38 in	150 mm	53 mm	35 mm	5.91 in	Wire Leads	OCP OTP OVP SCP	60 W	IP67	CB CCC CE cURus ENEC	12 V	1	90 VAC	85 °C	-40 C	5 A
