WS2085 Series

Manufacturer: E-Switch

Catalog

SWITCH SNAP ACTION SPDT 2A 250V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Ingress Protection	Switch Function	Voltage Rating - AC	Electrical Life	Actuator Type	Termination Style	Mounting Type	Operating Force	Circuit	Current Rating (Amps)	Voltage Rating - DC

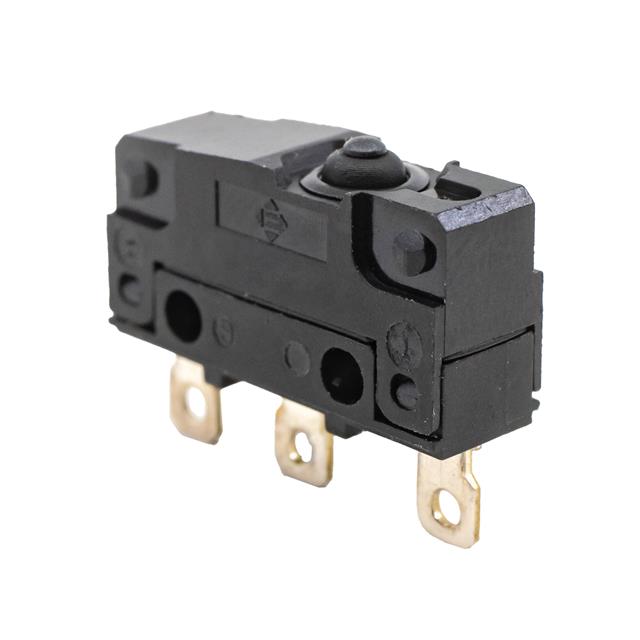

E-Switch WS20850100F183S1A	85 °C	-25 °C	500000 Cycles	IP67 - Dust Tight Waterproof	On-On	250 V	100000 Cycles	Round (Pin Plunger)	Solder Lug	Panel Mount	183 gf	SPDT	2 A	30 V

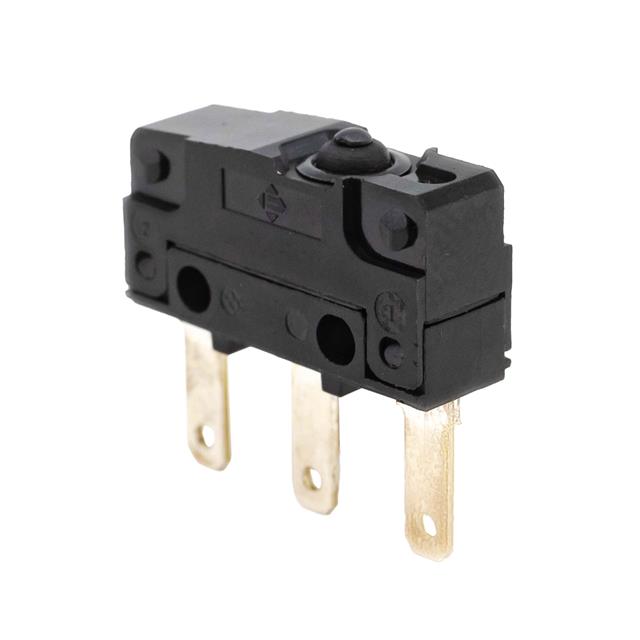

E-Switch WS20850100F183C1A	85 °C	-25 °C	500000 Cycles	IP67 - Dust Tight Waterproof	On-On	250 V	100000 Cycles	Round (Pin Plunger)	Quick Connect - 0.110" (2.8mm)	Panel Mount	183 gf	SPDT	2 A	30 V

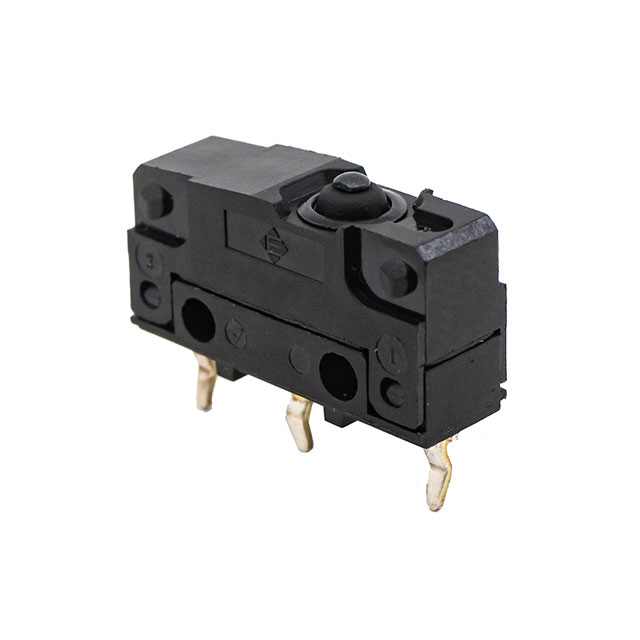

E-Switch WS20850100F183P1A	85 °C	-25 °C	500000 Cycles	IP67 - Dust Tight Waterproof	On-On	250 V	100000 Cycles	Round (Pin Plunger)	PC Pin	Through Hole	183 gf	SPDT	2 A	30 V
