A6E Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Length	Length	Electrical Life	Voltage Rating	Actuator Level	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Contact Finish	Circuit	Actuator Type	Termination Style	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6E-9101-N	1000 Cycles	24.23 mm	0.954 in	1000 Cycles	24 VDC	Flush Recessed	-20 ░C	70 °C	Through Hole	9	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.23 in	5.85 mm	2.54 mm	0.1 "

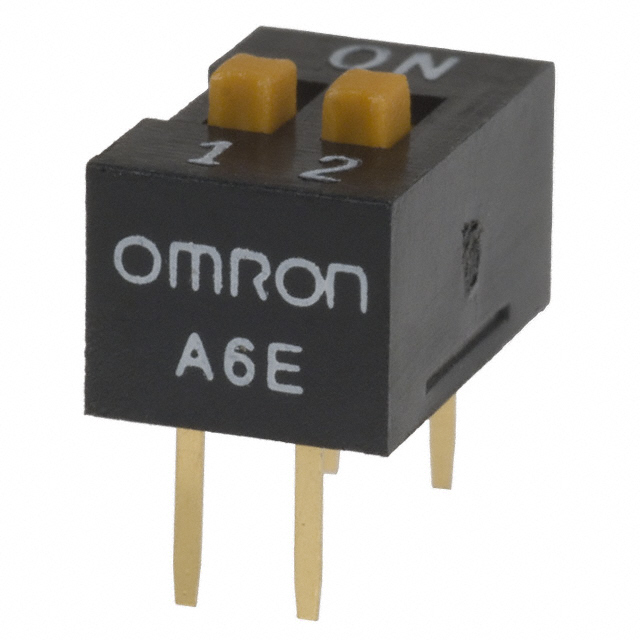

Omron Electronics Inc-EMC Div A6E-2104-N	1000 Cycles	6.44 mm	0.254 in	1000 Cycles	24 VDC	Raised	-20 ░C	70 °C	Through Hole	2	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.277 in	7.05 mm	2.54 mm	0.1 "
Omron Electronics Inc-EMC Div A6E-0101-N	1000 Cycles	26.76 mm	1.054 in	1000 Cycles	24 VDC	Flush Recessed	-20 ░C	70 °C	Through Hole	10	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.23 in	5.85 mm	2.54 mm	0.1 "

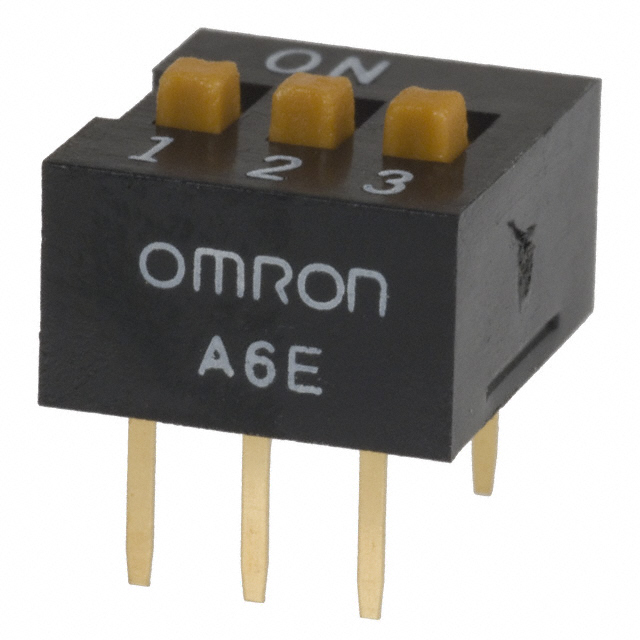

Omron Electronics Inc-EMC Div A6E-3104-N	1000 Cycles			1000 Cycles	24 VDC	Raised	-20 ░C	70 °C	Through Hole		Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.277 in	7.05 mm	2.54 mm	0.1 "	0.354 in	8.99 mm

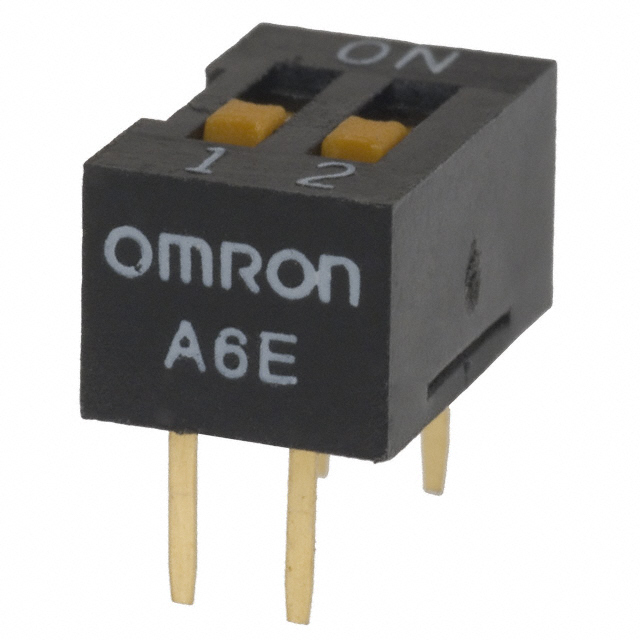

Omron Electronics Inc-EMC Div A6E-2101-N	1000 Cycles	6.44 mm	0.254 in	1000 Cycles	24 VDC	Flush Recessed	-20 ░C	70 °C	Through Hole	2	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.23 in	5.85 mm	2.54 mm	0.1 "

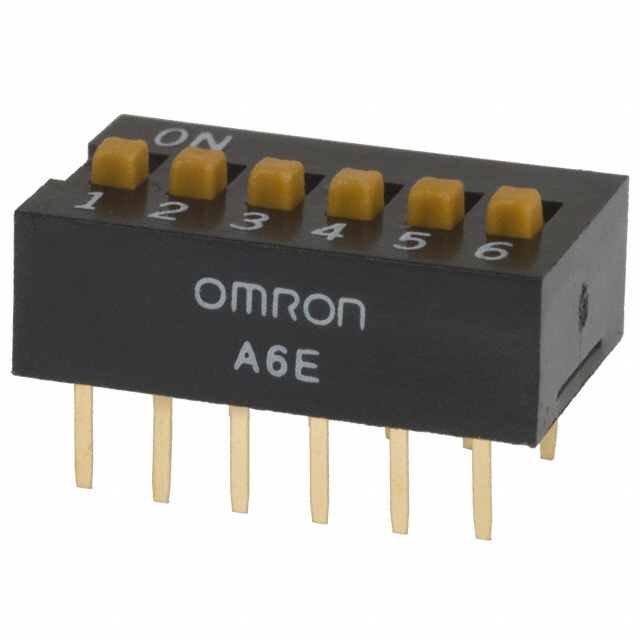

Omron Electronics Inc-EMC Div A6E-6104-N	1000 Cycles	16.61 mm	0.654 in	1000 Cycles	24 VDC	Raised	-20 ░C	70 °C	Through Hole	6	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.277 in	7.05 mm	2.54 mm	0.1 "

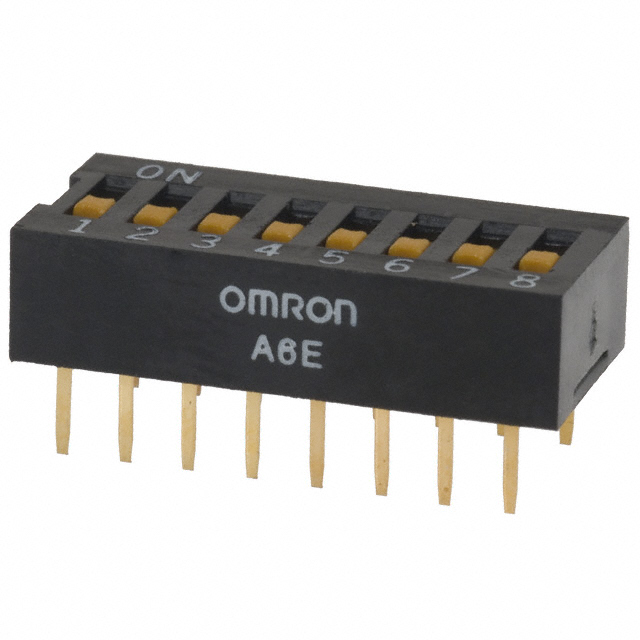

Omron Electronics Inc-EMC Div A6E-8101-N	1000 Cycles	21.68 mm	0.853 in	1000 Cycles	24 VDC	Flush Recessed	-20 ░C	70 °C	Through Hole	8	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.23 in	5.85 mm	2.54 mm	0.1 "
Omron Electronics Inc-EMC Div A6E-5104-N	1000 Cycles	14.06 mm	0.554 in	1000 Cycles	24 VDC	Raised	-20 ░C	70 °C	Through Hole	5	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.277 in	7.05 mm	2.54 mm	0.1 "
Omron Electronics Inc-EMC Div A6E-3101-N	1000 Cycles			1000 Cycles	24 VDC	Flush Recessed	-20 ░C	70 °C	Through Hole		Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.23 in	5.85 mm	2.54 mm	0.1 "	0.354 in	8.99 mm
Omron Electronics Inc-EMC Div A6E-4101-N	1000 Cycles			1000 Cycles	24 VDC	Flush Recessed	-20 ░C	70 °C	Through Hole	4	Gold	SPST	Slide (Standard)	PC Pin	25 mA	0.23 in	5.85 mm	2.54 mm	0.1 "	0.454 in	11.52 mm
