N7E50 Series

Catalog

JE150339388 N7E50-A516PG-20=50/MEMORYHDR/SMT/TOPMTG/25PDNII

Part	Mounting Feature	Insertion, Removal Method	Number of Positions	Height Above Board [z]	Height Above Board [z]	Mounting Type	Card Type	Contact Finish Thickness	Features	Contact Finish	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Ejector Side	Connector Type
3M Electronic Specialty N7E50-A516PG-20	Reverse - Bottom	Pull Out Push In	50	0.261 in	6.64 mm	Right Angle Surface Mount	CompactFlash® - Type I	Flash	Board Guide Card Guide	Gold
3M Electronic Specialty N7E50-M516RB-50-WF	Normal Standard - Top	Pull Out Push In	50	0.327 in		Right Angle Surface Mount	CompactFlash® - Type I II		Board Guide Card Guide	Gold	8.3 mm	30 Áin	0.76 Ám
3M Electronic Specialty N7E50-Q516EB-40	Normal Standard - Top	Pull Out Push In	50	0.183 in		Right Angle Surface Mount	CompactFlash® - Type I II		Board Guide Cable Guide	Gold	4.65 mm	30 Áin	0.76 Ám
3M Electronic Specialty N7E50-A516VY-30	Reverse - Bottom	Pull Out Push In	50	0.261 in	6.64 mm	Right Angle Surface Mount	CompactFlash® - Type I	Flash	Board Guide Card Guide	Gold
3M Electronic Specialty N7E50-N516EB-50-HTA	Reverse - Bottom	Push In Push Out	50	0.327 in		Right Angle Surface Mount	CompactFlash® - Type I II		Board Guide Card Guide	Gold	8.3 mm	30 Áin	0.76 Ám	Right	Connector and Ejector
3M Electronic Specialty N7E50-Q516RB-50	Normal Standard - Top	Pull Out Push In	50	0.341 "	8.65 mm	Right Angle Surface Mount	CompactFlash® - Type I II		Board Guide Card Guide	Gold		30 Áin	0.76 Ám
3M Electronic Specialty N7E50-E516VY-30	Normal Standard - Top	Pull Out Push In	50	0.157 in	4 mm	Right Angle Surface Mount	CompactFlash® - Type I	Flash	Board Guide Card Guide	Gold

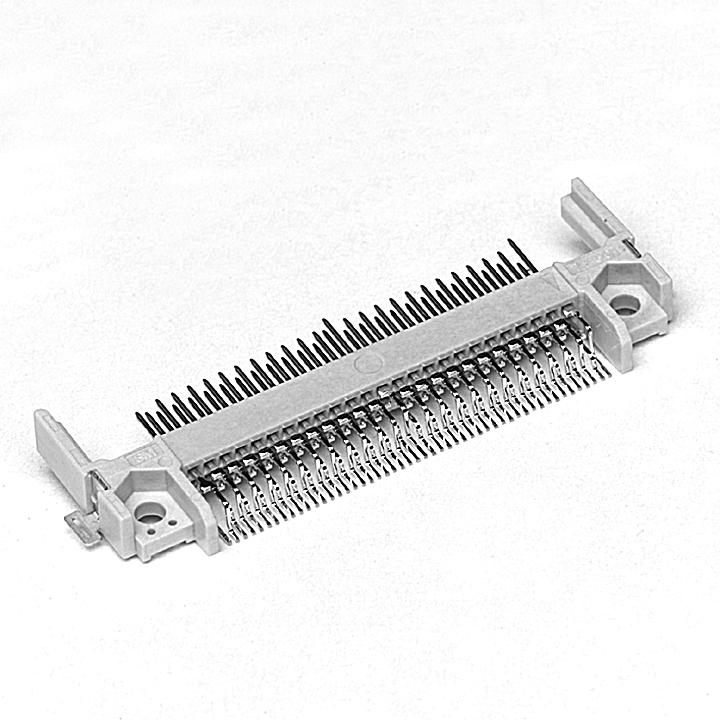

3M Electronic Specialty N7E50-D516PG-30-WF	Normal Standard - Top	Pull Out Push In	50	0.157 in	4 mm	Right Angle Surface Mount	CompactFlash® - Type I		Board Guide Card Guide
3M Electronic Specialty N7E50-7516PK-20-WF	Normal Standard - Top	Pull Out Push In	50	0.261 in	6.64 mm	Right Angle Surface Mount	CompactFlash® - Type I	Flash	Board Guide Card Guide	Gold
3M Electronic Specialty N7E50-N516RB-40-WFA	Reverse - Bottom	Push In Push Out	50	0.248 in	6.3 mm	Right Angle Surface Mount	CompactFlash® - Type I II		Board Guide Card Guide	Gold		30 Áin	0.76 Ám	Right	Connector and Ejector
