p4smaj Series
Manufacturer: Diotec Semiconductor
Beta
⌘K

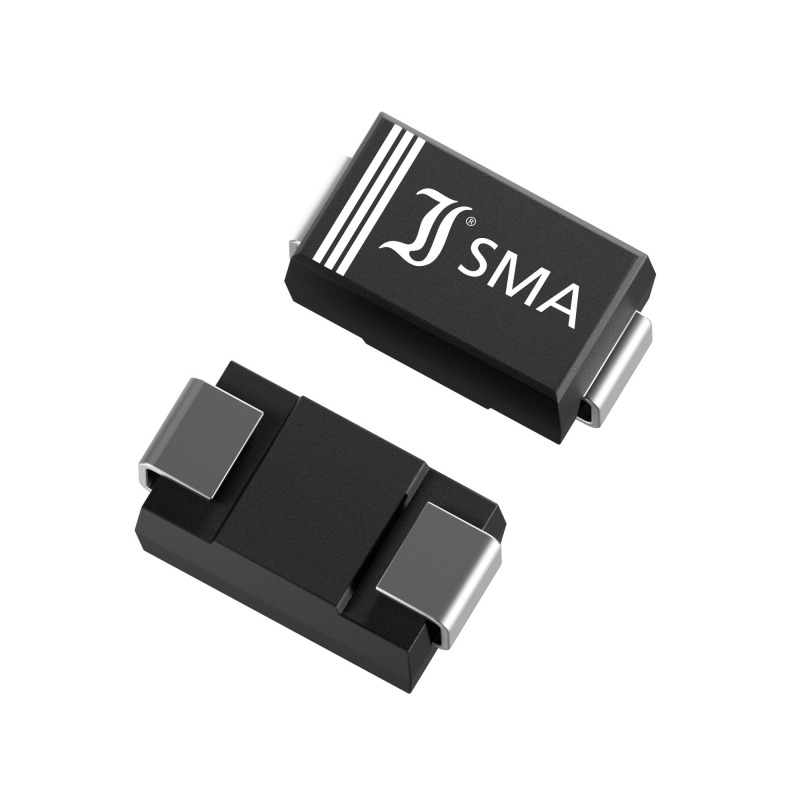

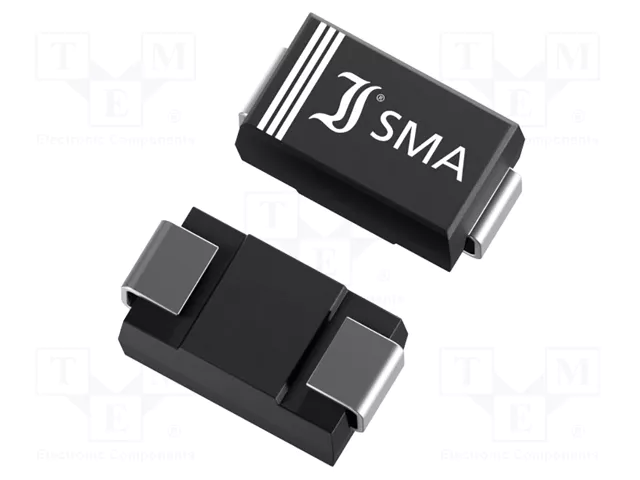

DIODE: TVS; 400W; 17.8÷19.8V; 15.4A; BIDIRECTIONAL; ±5%; SMA; P4SMAJ
| Part | Package / Case | Bidirectional Channels [custom] | Supplier Device Package | Qualification | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Reverse Standoff (Typ) | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Type | Power Line Protection | Voltage - Clamping (Max) @ Ipp [Max] | Mounting Type | Voltage - Breakdown (Min) [Min] | Unidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Diotec Semiconductor | DO-214AC SMA | 1 | DO-214AC (SMA) | AEC-Q101 | Automotive | -50 °C | 150 °C | 16 V | 15.4 A | 400 W | Zener | 26 V | Surface Mount | |||
 Diotec Semiconductor | DO-214AC SMA | DO-214AC (SMA) | AEC-Q101 | Automotive | -50 °C | 150 °C | 28 V | 8.8 A | 400 W | Zener | 45.4 V | Surface Mount | 31.1 V | 1 | ||
Diotec Semiconductor | DO-214AC SMA | DO-214AC (SMA) | AEC-Q101 | Automotive | -50 °C | 150 °C | 16 V | 15.4 A | 400 W | Zener | 26 V | Surface Mount | 1 | |||
 Diotec Semiconductor | DO-214AC SMA | DO-214AC (SMA) | AEC-Q101 | Automotive | -50 °C | 150 °C | 24 V | 10.3 A | 400 W | Zener | 38.9 V | Surface Mount | 26.7 V | 1 |
