CPT-5828 Series

Catalog

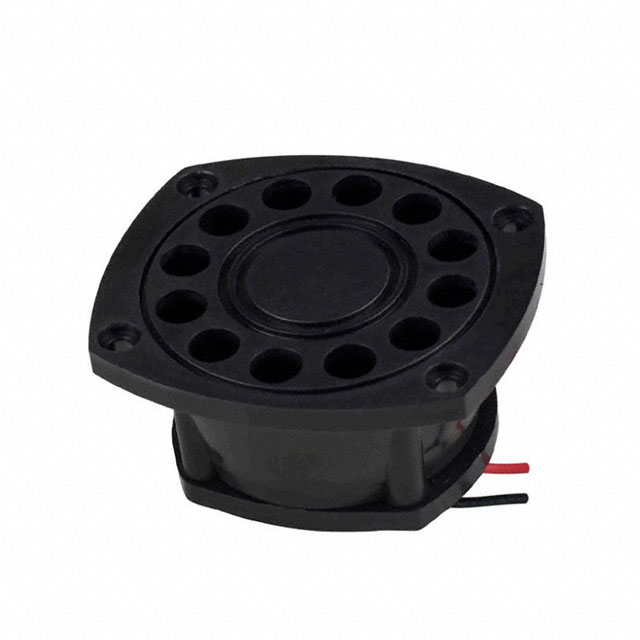

BUZZER PIEZO 85V 58.5X52.8 FLANG

Part	Termination	Sound Pressure Level (SPL)	Mounting Type	Technology	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Voltage - Rated	Current - Supply	Input Type	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Driver Circuitry	Port Location
Same Sky (Formerly CUI Devices) CPT-5828-108L170	Wire Leads	103 dB	Flange Panel Mount	Piezo	1.134 in	28.8 mm	2.079 in	58.5 mm	2.303 in	52.8 mm	2.7 kHz	85 V	90 mA	Peak-Peak Signal	3 V	85 V	-20 ░C	70 °C	Externally Driven Transducer	Top
Same Sky (Formerly CUI Devices) CPT-5828-108L170	Wire Leads	103 dB	Flange Panel Mount	Piezo	1.134 in	28.8 mm	2.079 in	58.5 mm	2.303 in	52.8 mm	2.7 kHz	85 V	90 mA	Peak-Peak Signal	3 V	85 V	-20 ░C	70 °C	Externally Driven Transducer	Top
