DAC3174 Series
Manufacturer: Texas Instruments
Beta
⌘K
DUAL-CHANNEL, 14-BIT, 500-MSPS DIGITAL-TO-ANALOG CONVERTER (DAC)
| Part | INL/DNL (LSB) | INL/DNL (LSB) | Voltage - Supply, Digital [Min] | Voltage - Supply, Digital [Max] | Supplier Device Package | Output Type | Reference Type | Operating Temperature [Max] | Operating Temperature [Min] | Differential Output | Settling Time | Architecture | Mounting Type | Package / Case | Data Interface | Number of Bits | DAC Type | Utilized IC / Part | Number of DAC's | Sampling Rate (Per Second) | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 1 LSB | 2 LSB | 1.71 V | 1.89 V | 64-VQFN (9x9) | Current - Unbuffered | External Internal | 85 °C | -40 °C | 11 ns | Current Source | Surface Mount | 64-VFQFN Exposed Pad | LVDS - Parallel | 14 | ||||||

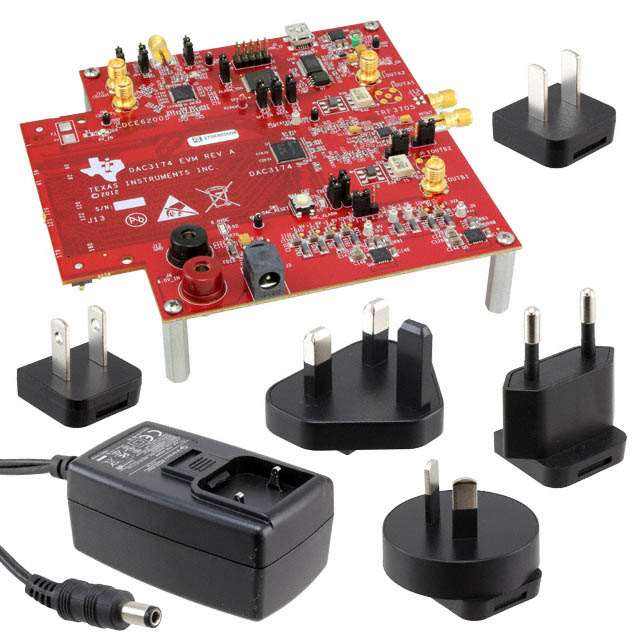

 Texas Instruments | 11 ns | DDR LVDS | 14 | Current | DAC3174 | 2 | 500 M | Board(s) | |||||||||||||
Texas Instruments | 1 LSB | 2 LSB | 1.71 V | 1.89 V | 64-VQFN (9x9) | Current - Unbuffered | External Internal | 85 °C | -40 °C | 11 ns | Current Source | Surface Mount | 64-VFQFN Exposed Pad | LVDS - Parallel | 14 |
