TSF70 Series

Liquid Level Sensors LLS

Manufacturer: Sensata-Crydom

Catalog

Liquid Level Sensors LLS

Catalog

Liquid Level Sensors LLS

Part	Material - Housing & Prism	Switch Actuation Level	Current	Minimum Liquid Specific Gravity [Min]	Voltage Rating	Output Type	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Switch Actuation Level	Switch Actuation Level
Sensata-Crydom TSF76Y050TV	Polyphenylene Sulphide (PPS)	0.354 in 0.945 in	600 mA	0.85	120 VDC 240 VAC	Switch (Single Float)	SPST-NC/NO	120 °C	-10 °C	M16x2 Thread Panel Mount	Liquid Temperature

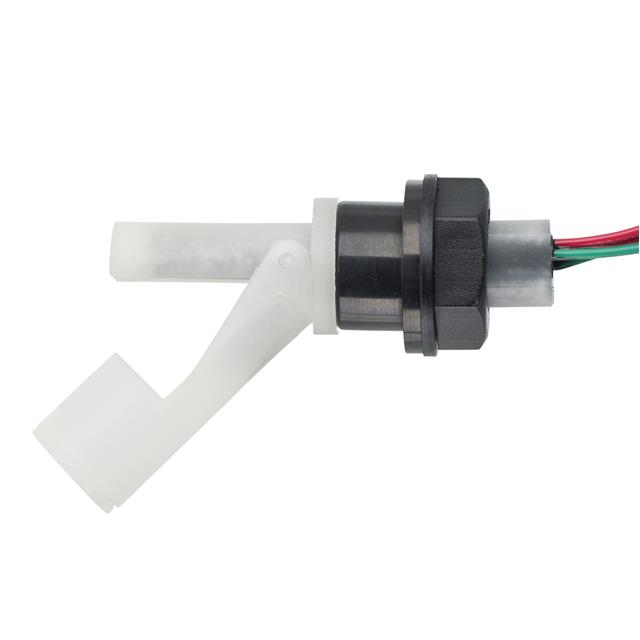

Sensata-Crydom TSF74H100DN	Polypropylene (PP)	8 mm 20 mm	1 A	0.85	300 VDC 300 VAC	Switch (Single Float)	SPST-NC/NO	100 °C	-20 ░C	M16x2 Thread Panel Mount	Liquid Temperature	0.3149 " 0.4641 "
Sensata-Crydom TSF73Y100DN	Nylon	0.276 in 0.464 in	600 mA	0.85	120 VDC 240 VAC	Switch (Single Float)	SPST-NC/NO			M16x2 Thread Panel Mount	Liquid Temperature		7 mm 20 mm
Sensata-Crydom TSF78Y100DN	Polypropylene (PP)	8 mm 20 mm	600 mA	0.85	120 VDC 240 VAC	Switch (Single Float)	SPST-NC/NO	100 °C	-20 ░C	M16x2 Thread Panel Mount	Liquid Temperature	0.3149 " 0.4641 "
Sensata-Crydom TSF76H050TV	Polyphenylene Sulphide (PPS)	0.354 in 0.945 in	1 A	0.85	300 VDC 300 VAC	Switch (Single Float)	SPST-NC/NO	120 °C	-10 °C	M16x2 Thread Panel Mount	Liquid Temperature

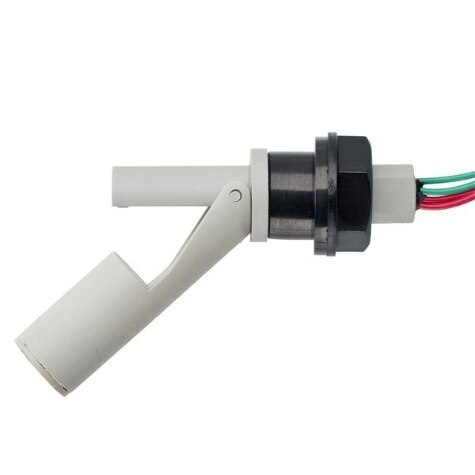

Sensata-Crydom TSF76H100DN	Polyphenylene Sulphide (PPS)	0.354 in 0.945 in	1 A	0.85	300 VDC 300 VAC	Switch (Single Float)	SPST-NC/NO	120 °C	-10 °C	M16x2 Thread Panel Mount	Liquid Temperature

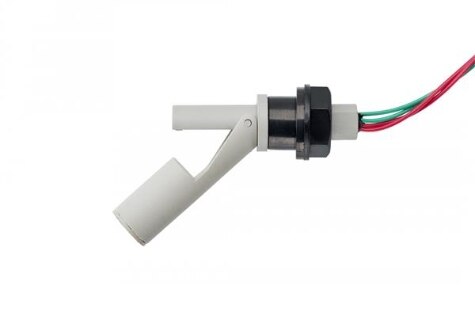

Sensata-Crydom TSF76Y100DN	Polyphenylene Sulphide (PPS)	0.354 in 0.945 in	600 mA	0.85	120 VDC 240 VAC	Switch (Single Float)	SPST-NC/NO	120 °C	-10 °C	M16x2 Thread Panel Mount	Liquid Temperature

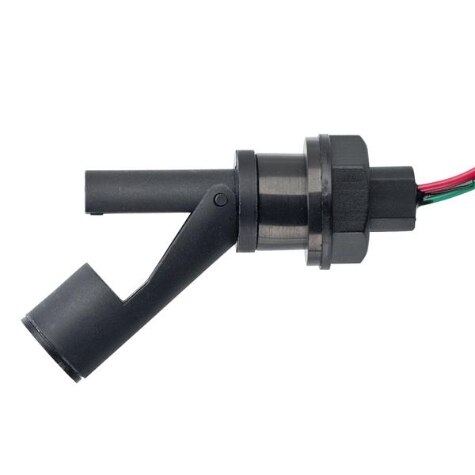

Sensata-Crydom TSF73H100DN	Nylon	0.276 in 0.464 in	1 A	0.85	300 VDC 300 VAC	Switch (Single Float)	SPST-NC/NO			M16x2 Thread Panel Mount	Liquid Temperature		7 mm 20 mm
Sensata-Crydom TSF78H100DN	Polypropylene (PP)	8 mm 20 mm	1 A	0.85	300 VDC 300 VAC	Switch (Single Float)	SPST-NC/NO	100 °C	-20 ░C	M16x2 Thread Panel Mount	Liquid Temperature	0.3149 " 0.4641 "
Sensata-Crydom TSF74Y100DN	Polypropylene (PP)	8 mm 20 mm	600 mA	0.85	120 VDC 240 VAC	Switch (Single Float)	SPST-NC/NO	100 °C	-20 ░C	M16x2 Thread Panel Mount	Liquid Temperature	0.3149 " 0.4641 "
