D3314 Series

Catalog

CONN HEADER R/A 14POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Finish - Mating	Number of Rows [custom]	Termination	Material Flammability Rating	Mounting Type	Contact Type	Contact Shape	Pitch - Mating	Pitch - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Current Rating (Amps)	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Material	Number of Positions	Style	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Overall Contact Length	Overall Contact Length
3M Electronic Specialty D3314-5302-AR	39.4 çin	1 çm	Brass	Header	0.1 in	2.54 mm	Tin	Gold	2	Solder	UL94 V-0	Right Angle Through Hole	Male Pin	Square	0.1 "	2.54 mm	Latch Lock/Eject Hooks Long	-55 C	105 ░C	Shrouded - 4 Wall	0.112 in	2.84 mm	All	1.75 A	0.24 in	6.1 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Board to Cable/Wire	8.64 mm	0.34 in	0.25 µm	10 µin	Black
3M Electronic Specialty D3314-5202-AR	39.4 çin	1 çm	Brass	Header	0.1 in	2.54 mm	Tin	Gold	2	Solder	UL94 V-0	Right Angle Through Hole	Male Pin	Square	0.1 "	2.54 mm	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.112 in	2.84 mm	All	1.75 A	0.24 in	6.1 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Board to Cable/Wire	8.64 mm	0.34 in	0.25 µm	10 µin	Black

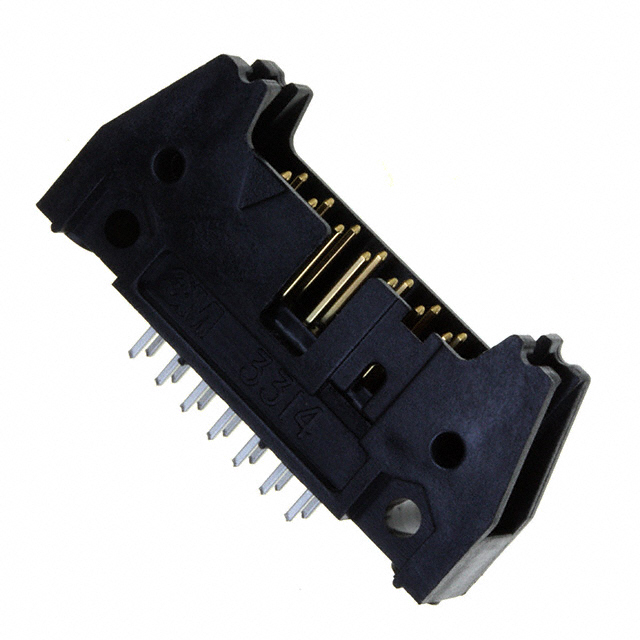

3M Electronic Specialty D3314-6002-AR	39.4 çin	1 çm	Brass	Header	0.1 in	2.54 mm	Tin	Gold	2	Solder	UL94 V-0	Through Hole	Male Pin	Square	0.1 "	2.54 mm	Push-Pull	-55 C	105 ░C	Shrouded - 4 Wall	0.112 in	2.84 mm	All	1.75 A	0.24 in	6.1 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Board to Cable/Wire	17.27 mm	0.68 in	0.25 µm	10 µin	Black	0.652 in	16.56 mm
3M Electronic Specialty D3314-5002-AR	39.4 çin	1 çm	Brass	Header	0.1 in	2.54 mm	Tin	Gold	2	Solder	UL94 V-0	Right Angle Through Hole	Male Pin	Square	0.1 "	2.54 mm	Push-Pull	-55 C	105 ░C	Shrouded - 4 Wall	0.112 in	2.84 mm	All	1.75 A	0.24 in	6.1 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Board to Cable/Wire	8.64 mm	0.34 in	0.25 µm	10 µin	Black
3M Electronic Specialty D3314-6202-AR	39.4 çin	1 çm	Brass	Header	0.1 in	2.54 mm	Tin	Gold	2	Solder	UL94 V-0	Through Hole	Male Pin	Square	0.1 "	2.54 mm	Latch Lock/Eject Hooks	-55 C	105 ░C	Shrouded - 4 Wall	0.112 in	2.84 mm	All	1.75 A	0.24 in	6.1 mm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	14	Board to Cable/Wire	17.27 mm	0.68 in	0.25 µm	10 µin	Black	0.652 in	16.56 mm
