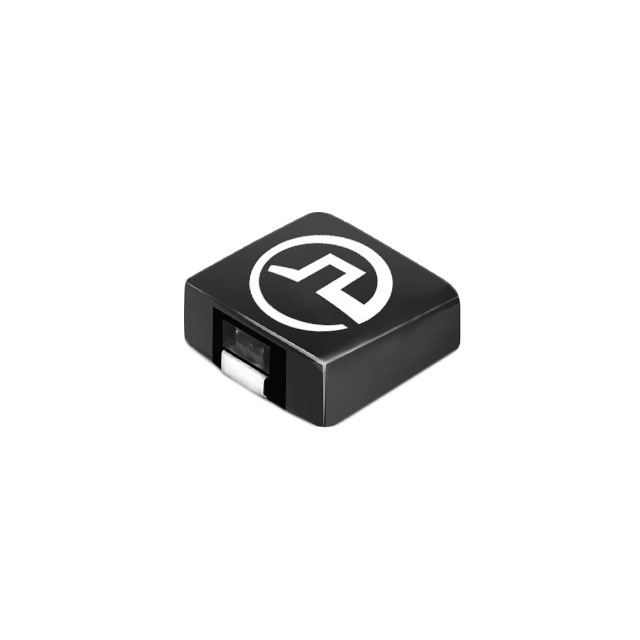

PG0255 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD SMT FLAT COIL 13A 2.20UH DCR=7MOHM
| Part | Inductance | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Height - Seated (Max) | Height - Seated (Max) [Max] | Current - Saturation (Isat) | DC Resistance (DCR) [Max] | Tolerance | Inductance Frequency - Test | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Package / Case | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 2.2 µH | 125 °C | -40 C | Shielded | 4 mm | 0.157 in | 20 A | 7 mOhm | 15 % | 100 kHz | Wirewound | 0.406 in | 10.8 mm | 10.3 mm | 0.425 in | Nonstandard | Surface Mount | 13 A |
