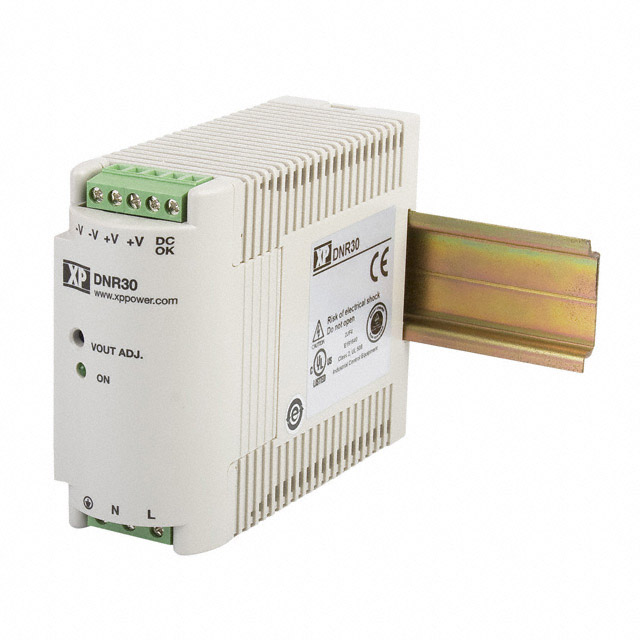

DNR30 Series

Manufacturer: XP Power

Catalog

AC/DC DIN RAIL SUPPLY 24V 30W

Part	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Isolation	Power (Watts)	Voltage - Output 1	Approval Agency	Applications	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max) [Max]	Efficiency
XP Power DNR30US24	Adjustable Output Universal Input	90 VAC	264 VAC	3000 V	30 Watts	24 V	CE	Hazardous Locations Industrial ITE (Commercial)	AC or DC	4.53 "	90 mm	115 mm	40.5 mm	3.54 "	1.59 "	90 V	375 V	62368-1	70 °C	-20 °C	1	1.25 A	86 %
XP Power DNR30US48	Adjustable Output Universal Input	90 VAC	264 VAC	3000 V	30 Watts	48 V	CE	Hazardous Locations Industrial ITE (Commercial)	AC or DC	4.53 "	90 mm	115 mm	40.5 mm	3.54 "	1.59 "	90 V	375 V	62368-1	70 °C	-20 °C	1	625 mA	86 %
XP Power DNR30US12	Adjustable Output Universal Input	90 VAC	264 VAC	3000 V	30 Watts	12 V	CE	Hazardous Locations Industrial ITE (Commercial)	AC or DC	4.53 "	90 mm	115 mm	40.5 mm	3.54 "	1.59 "	90 V	375 V	62368-1	70 °C	-20 °C	1	2.5 A	84 %
XP Power DNR30US12-S	Adjustable Output Universal Input	90 VAC	264 VAC	3000 V	30 Watts	12 V	CE	Hazardous Locations Industrial ITE (Commercial)	AC or DC	4.53 "	90 mm	115 mm	40.5 mm	3.54 "	1.59 "	90 V	375 V	62368-1	70 °C	-20 °C	1	2.5 A	84 %
XP Power DNR30US05	Adjustable Output Universal Input	90 VAC	264 VAC	3000 V	30 Watts	5 V	CE	Hazardous Locations Industrial ITE (Commercial)	AC or DC	4.53 "	90 mm	115 mm	40.5 mm	3.54 "	1.59 "	90 V	375 V	62368-1	70 °C	-20 °C	1	6 A	79 %
