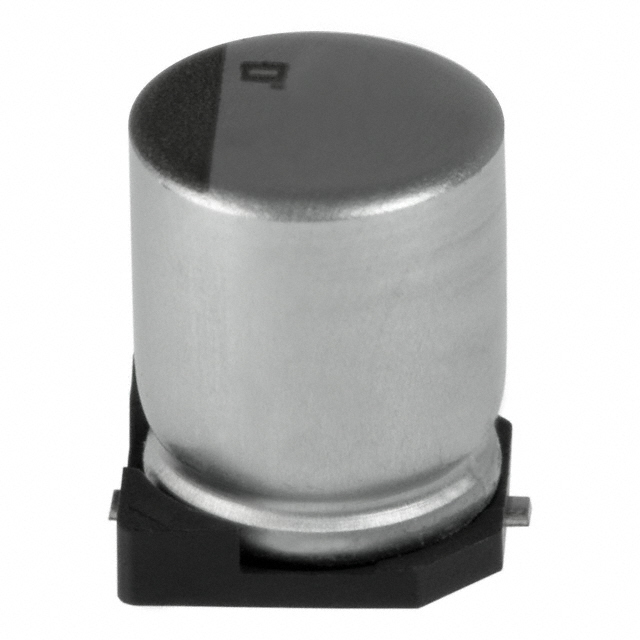

MVY Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 220UF 63 VOLT

Part	Voltage - Rated	Ripple Current @ Low Frequency	Capacitance	Impedance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Lifetime @ Temp.	Ripple Current @ High Frequency	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Mounting Type	Height - Seated (Max) [Max] [z]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Height - Seated (Max) [Max] [z]	Ratings	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max)
Chemi-Con EMVY630ARA221MKE0S	63 V	250 mA	220 µF	190 mOhms	0.492 in	12.5 mm	Polar	0.531 in	13.5 mm	General Purpose	5000 Hrs	500 mA	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount
Chemi-Con EMVY630GTR221MLH0S	63 V		220 µF		0.63 in	16 mm	Polar		17 mm	General Purpose	5000 Hrs		20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount	0.669 "	17 mm	17 mm	0.669 in	0.669 in
Chemi-Con EMVY160ARA471MHA0G	16 V	225 mA	470 µF	300 mOhms	0.315 in	8 mm	Polar	0.394 in	10 mm	General Purpose	2000 Hrs	450 mA	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount		8.3 mm	8.3 mm	0.327 in	0.327 in
Chemi-Con EMVY250GTR102MLH0S	25 VDC	756 mA	1000 µF	54 mOhms	0.63 in	16 mm	Polar			General Purpose	5000 Hrs	1.26 A	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount	0.65 in	17 mm	17 mm	0.669 in	0.669 in	16.5 mm
Chemi-Con EMVY100ARA102MJA0G	10 V	402 mA	1000 µF	150 mOhms	0.394 in	10 mm	Polar	0.394 in	10 mm	General Purpose	2000 Hrs		20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount		10.3 mm	10.3 mm	0.406 in	0.406 "
Chemi-Con EMVY101ARA101MLH0S	100 V	260 mA	100 µF	240 mOhms	0.63 in	16 mm	Polar		17 mm	General Purpose	5000 Hrs	650 mA	20 %	-40 C	105 ░C	Radial Can - SMD	Surface Mount	0.669 "	17 mm	17 mm	0.669 in	0.669 in
Chemi-Con EMVY250ARA222MLN0S	25 VDC	1.2225 A	2.2 mF	38 mOhms	0.63 in	16 mm	Polar			General Purpose	5000 Hrs	1.63 A	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount		0.642 in 16.3 mm	0.642 in 16.3 mm				AEC-Q200	0.866 in	22 mm
Chemi-Con EMVY250ARA470MF55G	25 VDC	56 mA	47 µF	1 Ohms	0.248 "	6.3 mm	Polar	0.205 in	5.2 mm	General Purpose	1000 Hrs	140 mA	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount		6.6 mm	6.6 mm	0.26 in	0.26 in
Chemi-Con EMVY500ARA102MMN0S	50 VDC	912 mA	1000 µF	50 mOhms	0.709 in	18 mm	Polar			General Purpose	5000 Hrs	1.52 A	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount		19 mm	19 mm	0.748 in	0.748 in			0.866 in	22 mm
Chemi-Con EMVY500ARA330MF80G	50 VDC	68 mA	33 ÁF	600 mOhms	0.248 "	6.3 mm	Polar	0.303 in		General Purpose	1000 Hrs	170 mA	20 %	-55 C	105 ░C	Radial Can - SMD	Surface Mount		6.6 mm	6.6 mm	0.26 in	0.26 in					7.7 mm
