TAJ Low Profile Series

Catalog

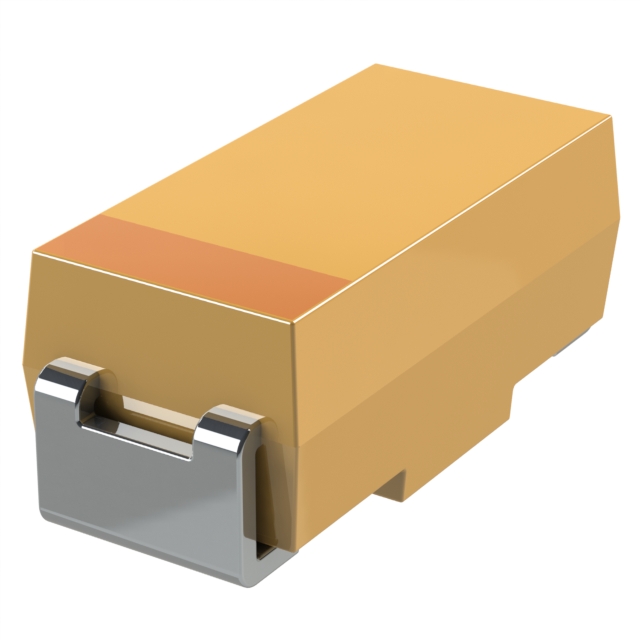

TANTALUM CAPACITORS - SOLID SMD 10V 6.8UF 20%

Part	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	Voltage - Rated	Features	ESR (Equivalent Series Resistance)	Tolerance	Capacitance	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Package / Case	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KYOCERA AVX TAJP685M010RNJ	-55 C	125 °C	P	10 V	General Purpose	5 Ohm	20 %	6.8 µF	Surface Mount	0.053 "	0.081 in	2.05 mm	1.35 mm	Molded	0.059 "	1.5 mm	0805
KYOCERA AVX TAJY227K010SNJ
KYOCERA AVX TAJW475K035HNJ	-55 C	125 °C	W	35 V	General Purpose	2.2 Ohm	10 %	4.7 µF	Surface Mount	0.126 in	0.236 in	6 mm	3.2 mm	Molded	0.059 "	1.5 mm	2312 (6032 Metric)	2000 Hrs
KYOCERA AVX TAJT684K020RNJ	-55 C	125 °C	T	20 V	General Purpose	15 Ohms	10 %	0.68 µF	Surface Mount	0.11 "	0.138 in	3.5 mm	2.8 mm	Molded			1210 1411 (3528 Metric)		1.2 mm	0.047 "
KYOCERA AVX TAJY686K016RNJ	-55 C	125 °C	Y	16 V	General Purpose	900 mOhm	10 %	68 µF	Surface Mount	0.169 "	0.287 "	7.3 mm	4.3 mm	Molded			2917 (7343 Metric)				0.079 in	2 mm
KYOCERA AVX TAJR334K020RNJ	-55 C	125 °C	R	20 V	General Purpose	25 Ohm	10 %	0.33 µF	Surface Mount	0.051 in	0.081 in	2.05 mm	1.3 mm	Molded			0805		1.2 mm	0.047 "
KYOCERA AVX TAJW106K020RNJ	-55 C	125 °C	W	20 V	General Purpose	1.9 Ohms	10 %	10 µF	Surface Mount	0.126 in	0.236 in	6 mm	3.2 mm	Molded	0.059 "	1.5 mm	2312 (6032 Metric)
KYOCERA AVX TAJS476M002RNJ	-55 C	125 °C	S	2.5 V	General Purpose	1.6 Ohm	20 %	47 µF	Surface Mount	0.063 "	0.126 "	3.2 mm	1.6 mm	Molded			1206 (3216 Metric)		1.2 mm	0.047 "
KYOCERA AVX TAJP226K004RNJ	-55 C	125 °C	P	4 V	General Purpose	5 Ohm	10 %	22 µF	Surface Mount	0.053 "	0.081 in	2.05 mm	1.35 mm	Molded	0.059 "	1.5 mm	0805
KYOCERA AVX TAJR684M020RNJ	-55 C	125 °C	R	20 V	General Purpose	20 Ohms	20 %	0.68 µF	Surface Mount	0.051 in	0.081 in	2.05 mm	1.3 mm	Molded			0805		1.2 mm	0.047 "
