8501KF Series
Manufacturer: SCHNEIDER ELECTRIC
Beta
⌘K

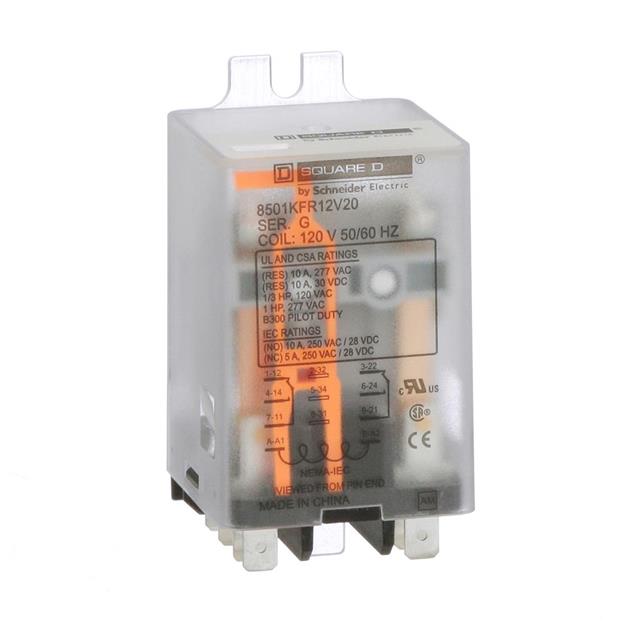

PLUG IN RELAY, TYPE KF, FLANGE M
| Part | Contact Material | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Relay Type | Contact Rating (Current) | Operate Time | Termination Style | Release Time | Switching Voltage | Mounting Type | Coil Voltage | Coil Type | Contact Form |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHNEIDER ELECTRIC | Silver Nickel (AgNi) | 300 W 3000 VA | 55 °C | -40 C | General Purpose | 10 A | 20 ms | Quick Connect - Multiple Sizes | 20 ms | 30 VDC 300 VAC | Chassis Mount | 120 VAC | Non Latching | DPDT (2 Form C) |
 SCHNEIDER ELECTRIC | Silver Nickel (AgNi) | 300 W 3000 VA | 55 °C | -40 C | General Purpose | 10 A | 20 ms | Quick Connect - 0.250" (6.3mm) | 20 ms | 30 VDC 300 VAC | Chassis Mount | 24 VAC | Non Latching | DPDT (2 Form C) |
