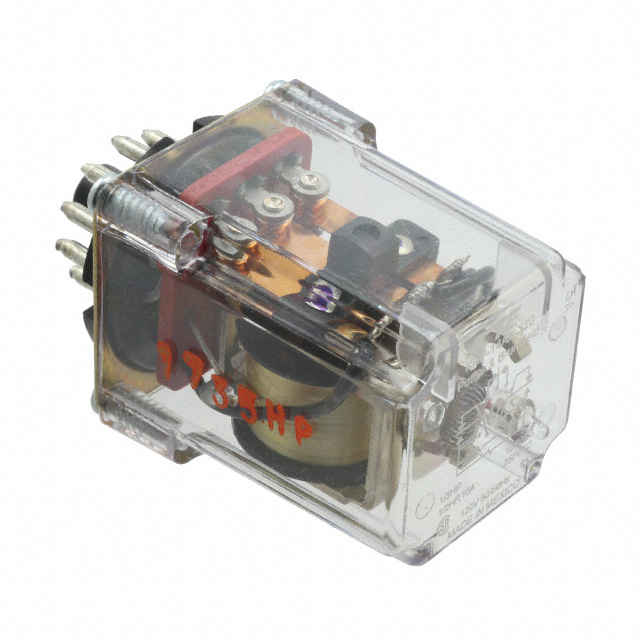

KRP-14A Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 120V
| Part | Coil Resistance | Coil Voltage | Mounting Type | Contact Material | Features | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Termination Style | Contact Form | Approval Agency | Coil Current | Relay Type | Load - Max Switching | Coil Insulation | Switching Voltage [Max] | Contact Rating (Current) | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.25 kOhms | 120 VAC | Socketable | Silver Cadmium Oxide (AgCdO) | Lighted Indicator | 102 VAC | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | CSA UR | 17.5 mA | General Purpose | 2400 VA | Class B | 240 VAC | 10 A | Non Latching |
 TE Connectivity AMP Connectors | 2.25 kOhms | 120 VAC | Socketable | Silver Cadmium Oxide (AgCdO) | 102 VAC | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | 17.5 mA | General Purpose | Class B | 240 VAC | 10 A | Non Latching | |||
 TE Connectivity AMP Connectors | 85 Ohms | 24 VAC | Socketable | Silver Cadmium Oxide (AgCdO) | Lighted Indicator | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | CSA UR | 84 mA | General Purpose | 2400 VA | Class B | 240 VAC | 10 A | Non Latching | |
TE Connectivity AMP Connectors | 85 Ohms | 24 VAC | Socketable | Silver Cadmium Oxide (AgCdO) | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | 84 mA | General Purpose | Class B | 240 VAC | 10 A | Non Latching | ||||
 TE Connectivity AMP Connectors | 2.25 kOhms | 120 VAC | Socketable | Silver Cadmium Oxide (AgCdO) | 102 VAC | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | CSA UR | 17.5 mA | General Purpose | 2400 VA | Class B | 240 VAC | 10 A | Non Latching | |
TE Connectivity AMP Connectors | 9.11 kOhms | 240 VAC/DC | Socketable | Silver Cadmium Oxide (AgCdO) | 204 VAC | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | 8.8 mA | General Purpose | Class B | 240 VAC | 10 A | Non Latching | |||
TE Connectivity AMP Connectors | 85 Ohms | 24 VAC | Socketable | Silver Cadmium Oxide (AgCdO) | 55 °C | -45 °C | 11 Pin | Plug In | 3PDT (3 Form C) | CSA UR | 84 mA | General Purpose | 2400 VA | Class B | 240 VAC | 10 A | Non Latching |
