AAA3MB Series

Catalog

XLR CONNECTOR, 3 CONTACTS, PLUG, CABLE MOUNT, SILVER PLATED CONTACTS, METAL BODY

Part	Backshell Material, Plating [custom]	Backshell Material, Plating [custom]	Current Rating (Amps)	Orientation	Fastening Type	Voltage Rating	Insert Material	Contact Material	Mounting Type	Color	Contact Finish - Mating	Primary Material	Features	Shielding	Shell Size - Insert	Connector Type	Shell Finish	Shell Material	Applications	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection

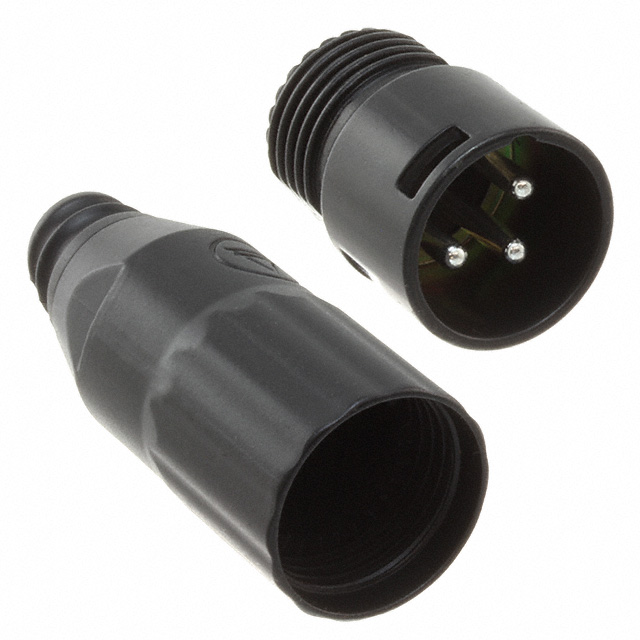

SWITCHCRAFT/CONXALL AAA3MBZ	Chrome	Zinc	15 A	Keyed	Latch Lock	125 VAC	Thermoplastic	Copper Alloy	Free Hanging (In-Line)	Black	Silver	Metal	Backshell Cable Clamp Ground Strain Relief	Shielded	XLR	Receptacle Male Pins	Chrome	Zinc Alloy	Audio Industrial Instrumentation Medical	2.54 mm	5.59 mm	0.22 in	0.1 "
SWITCHCRAFT/CONXALL AAA3MBGGLP				Keyed	Latch Lock		Thermoplastic	Copper Alloy	Free Hanging (In-Line)	Black Green	Silver	Metal	Backshell Ground Strain Relief	Shielded	XLR	Receptacle Male Pins	Black Painted	Zinc Alloy	Audio Instrumentation	3.68 mm	5.21 mm	0.205 in	0.145 in	Thermoplastic
SWITCHCRAFT/CONXALL AAA3MBAUZH	Chrome	Zinc		Keyed	Latch Lock		Thermoplastic	Copper Alloy	Free Hanging (In-Line)	Black	Gold	Metal	Backshell Cable Clamp Ground Strain Relief	Shielded	XLR	Receptacle Male Pins	Chrome	Zinc Alloy	Audio Instrumentation	3.81 mm	7.24 mm	0.285 in	0.15 "		-40 C	65 °C	IP66 - Dust Tight Water Resistant

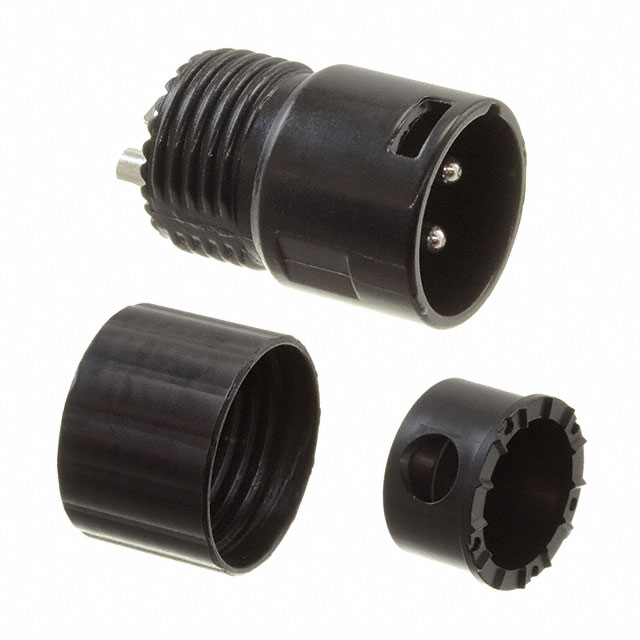

SWITCHCRAFT/CONXALL AAA3MBLP				Keyed	Latch Lock		Thermoplastic	Copper Alloy	Free Hanging (In-Line)	Black	Silver	Metal	Backshell Ground Strain Relief	Shielded	XLR	Receptacle Male Pins	Black Painted	Zinc Alloy	Audio Instrumentation	3.68 mm	5.21 mm	0.205 in	0.145 in	Thermoplastic

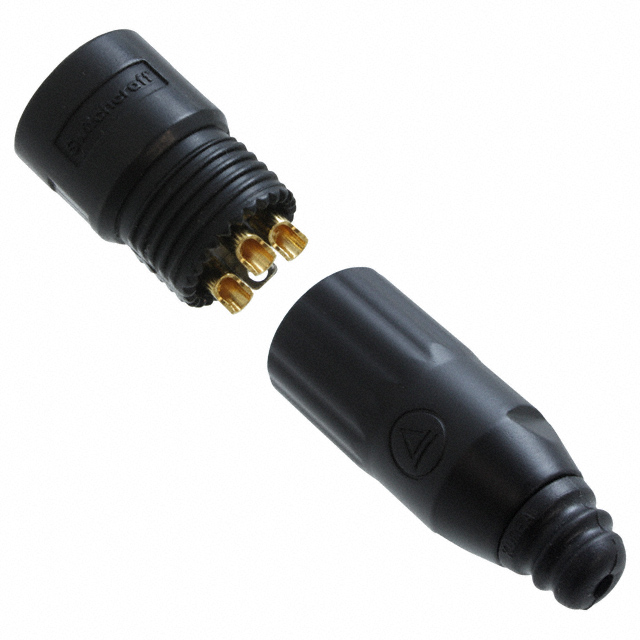

SWITCHCRAFT/CONXALL AAA3MBAUZ	Chrome	Zinc	15 A	Keyed	Latch Lock	125 VAC	Thermoplastic	Copper Alloy	Free Hanging (In-Line)	Black	Gold	Metal	Backshell Cable Clamp Ground Strain Relief	Shielded	XLR	Receptacle Male Pins	Chrome	Zinc Alloy	Audio Industrial Instrumentation Medical	2.54 mm	5.59 mm	0.22 in	0.1 "
SWITCHCRAFT/CONXALL AAA3MBYYLP				Keyed	Latch Lock		Thermoplastic	Copper Alloy	Free Hanging (In-Line)		Silver	Metal	Backshell Ground Strain Relief	Shielded	XLR	Receptacle Male Pins	Black Painted	Zinc Alloy	Audio Instrumentation	3.68 mm	5.21 mm	0.205 in	0.145 in	Thermoplastic
