AD4696 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

16-BIT, 16-CHANNEL, 1 MSPS, EASY DRIVE MULTIPLEXED SAR ADC

Part	Features	Ratio - ADC	Ratio - S/H	Data Interface	Number of A/D Converters	Voltage - Supply, Analog (Range 2 Min)	Voltage - Supply, Analog (Range 2 Max)	Voltage - Supply, Analog (Range 1 Max)	Voltage - Supply, Analog (Range 1 Min)	Configuration	Number of Bits	Input Type	Package Name	Package Width	Package Length	Package / Case	Voltage - Supply, Digital (Range 2) Maximum	Voltage - Supply, Digital (Range 1) Minimum	Voltage - Supply, Digital (Range 1) Maximum	Voltage - Supply, Digital (Range 2) Minimum	Architecture	Number of Inputs	Operating Temperature (Max)	Operating Temperature (Min)	Reference Type	Sampling Rate (Per Second)	Mounting Type	Supplied Contents	Utilized IC / Part	Power (Typ)	Input Voltage (Value)	Contents
Analog Devices Inc./Maxim Integrated AD4696BCBZ-RL7	Internal Oscillator Temperature Sensor	1	1	DSP Microwire QSPI Serial SPI	1 count	3.15 V	5.5 V	1.89 V	1.71 V	MUX-ADC	16 bits	Pseudo-Differential	36-WLCSP	2.96 mm	2.96 mm	36-UFBGA WLCSP	5.5 V	1.71 V	1.89 V	3.15 V	SAR	16	125 °C	-40 °C	External	1 MHz	Surface Mount

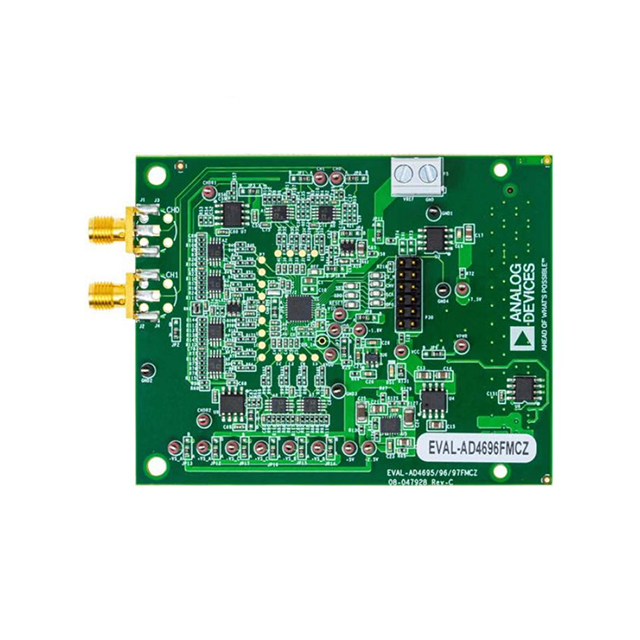

Analog Devices Inc./Maxim Integrated EVAL-AD4696FMCZ				Serial SPI	16 count						16 bits															1 MHz		Board(s)	AD4696	8 mW	5 V	Board
Analog Devices Inc./Maxim Integrated AD4696BCPZ	Internal Oscillator Temperature Sensor	1	0	DSP Microwire QSPI Serial SPI	1 count	3.15 V	5.5 V	1.89 V	1.71 V	MUX-ADC	16 bits	Pseudo-Differential	32-LFCSP-WQ	5 mm	5 mm	32-WFQFN Exposed Pad CSP	5.5 V	1.71 V	1.89 V	3.15 V	SAR	16	125 °C	-40 °C	External	1 MHz	Surface Mount
Analog Devices Inc./Maxim Integrated AD4696BCPZ-RL7	Internal Oscillator Temperature Sensor	1	0	DSP Microwire QSPI Serial SPI	1 count	3.15 V	5.5 V	1.89 V	1.71 V	MUX-ADC	16 bits	Pseudo-Differential	32-LFCSP-WQ	5 mm	5 mm	32-WFQFN Exposed Pad CSP	5.5 V	1.71 V	1.89 V	3.15 V	SAR	16	125 °C	-40 °C	External	1 MHz	Surface Mount
