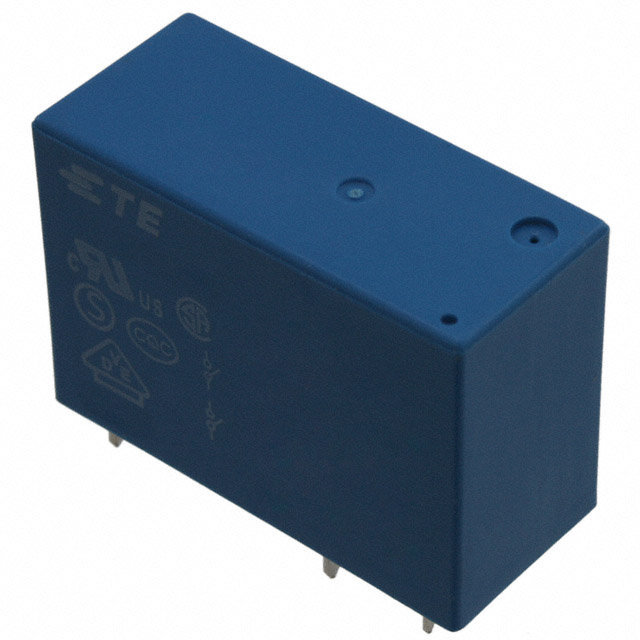

OMI-SS Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE SPST 10A 12V

Part	Coil Resistance	Coil Type	Must Release Voltage	Seal Rating	Switching Voltage [Max]	Must Operate Voltage	Coil Current	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Contact Form	Approval Agency	Coil Voltage	Termination Style	Operate Time	Load - Max Switching	Contact Rating (Current)	Mounting Type	Contact Material
TE Connectivity AMP Connectors OMI-SS-112DM,300	200 Ohms	Non Latching	0.6 VDC	Sealed - Flux Protection	30 VDC 250 VAC	8.4 VDC	0.06 A	8 ms	-30 ░C	60 °C	General Purpose	SPST-NO (1 Form A)	CQC CSA UR VDE	12 VDC	PC Pin	15 ms	300 W 2500 VA	10 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-112L,000	270 Ohms	Non Latching	0.6 VDC	Sealed - Flux Protection	30 VDC 250 VAC	9 VDC	44.4 mA	8 ms	-30 ░C	70 °C	General Purpose	SPDT (1 Form C)	CQC CSA UR VDE	12 VDC	PC Pin	20 ms	300 W 2500 VA	10 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-248L,500	4.4 kOhms	Non Latching	2.4 VDC	Sealed - Flux Protection	30 VDC 250 VAC	36 VDC	11.3 mA	8 ms	-30 ░C	70 °C	General Purpose	DPDT (2 Form C)	CQC CSA UR VDE	48 VDC	PC Pin	20 ms	150 W 1250 VA	5 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-124LM,300		Non Latching	1.2 VDC	Sealed - Flux Protection	30 VDC 250 VAC	18 VDC	22.5 mA	8 ms	-30 ░C	70 °C	General Purpose	SPST-NO (1 Form A)	CQC CSA UR VDE	24 VDC	PC Pin	20 ms	300 W 2500 VA	10 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-224D,500	820 Ohms	Non Latching	1.2 VDC	Sealed - Flux Protection	30 VDC 250 VAC	16.8 VDC	0.03 A	8 ms	-30 ░C	60 °C	General Purpose	DPDT (2 Form C)	CQC CSA UR VDE	24 VDC	PC Pin	15 ms	150 W 1250 VA	5 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-112D,300	200 Ohms	Non Latching	0.6 VDC	Sealed - Flux Protection	30 VDC 250 VAC	8.4 VDC	0.06 A	8 ms	-30 ░C	60 °C	General Purpose	SPDT (1 Form C)	CQC CSA UR VDE	12 VDC	PC Pin	15 ms	300 W 2500 VA	10 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-224DM,500	820 Ohms	Non Latching	1.2 VDC	Sealed - Flux Protection	30 VDC 250 VAC	16.8 VDC	0.03 A	8 ms	-30 ░C	60 °C	General Purpose	DPST-NO (2 Form A)	CQC CSA UR VDE	24 VDC	PC Pin	15 ms	150 W 1250 VA	5 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-112L,300	270 Ohms	Non Latching	0.6 VDC	Sealed - Flux Protection	30 VDC 250 VAC	9 VDC	44.4 mA	8 ms	-30 ░C	70 °C	General Purpose	SPDT (1 Form C)	CQC CSA UR VDE	12 VDC	PC Pin	20 ms	300 W 2500 VA	10 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-124L,300		Non Latching	1.2 VDC	Sealed - Flux Protection	30 VDC 250 VAC	18 VDC	22.5 mA	8 ms	-30 ░C	70 °C	General Purpose	SPDT (1 Form C)	CQC CSA UR VDE	24 VDC	PC Pin	20 ms	300 W 2500 VA	10 A	Through Hole	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors OMI-SS-209L,500	155 Ohms	Non Latching	0.45 VDC	Sealed - Flux Protection	30 VDC 250 VAC	6.75 VDC	58 mA	8 ms	-30 ░C	70 °C	General Purpose	DPDT (2 Form C)	CQC CSA UR VDE	9 VDC	PC Pin	20 ms	150 W 1250 VA	5 A	Through Hole	Silver Tin Oxide (AgSnO)
